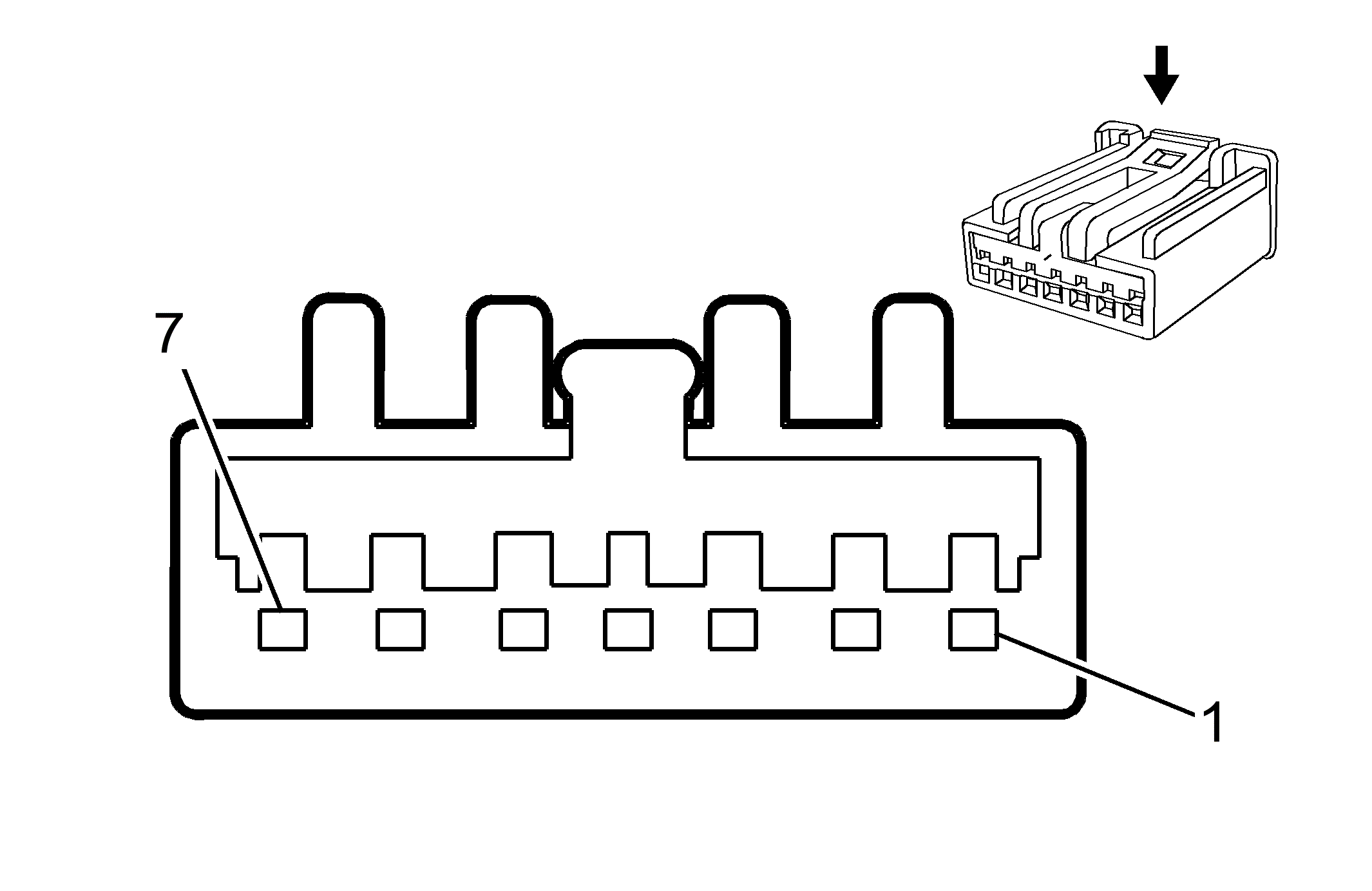

S70L Steering Wheel Controls Switch - Left (K34)
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: AIT2PB-7-1FS
- Service Connector: Service by Harness - See Part Catalog
- Description: 7-way F (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Parts Catalog |
J-35616-64B (L-BU) |
Not Available |
Service by Harness - See Parts Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH/RD |
1444 |
12 Volt Reference |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BN/D-GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 4-5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 7 |
0.35 |
BK |
1650 |
Ground |
I |
- |
