S64D Seat Adjuster Switch - Driver (ADS)
|
|

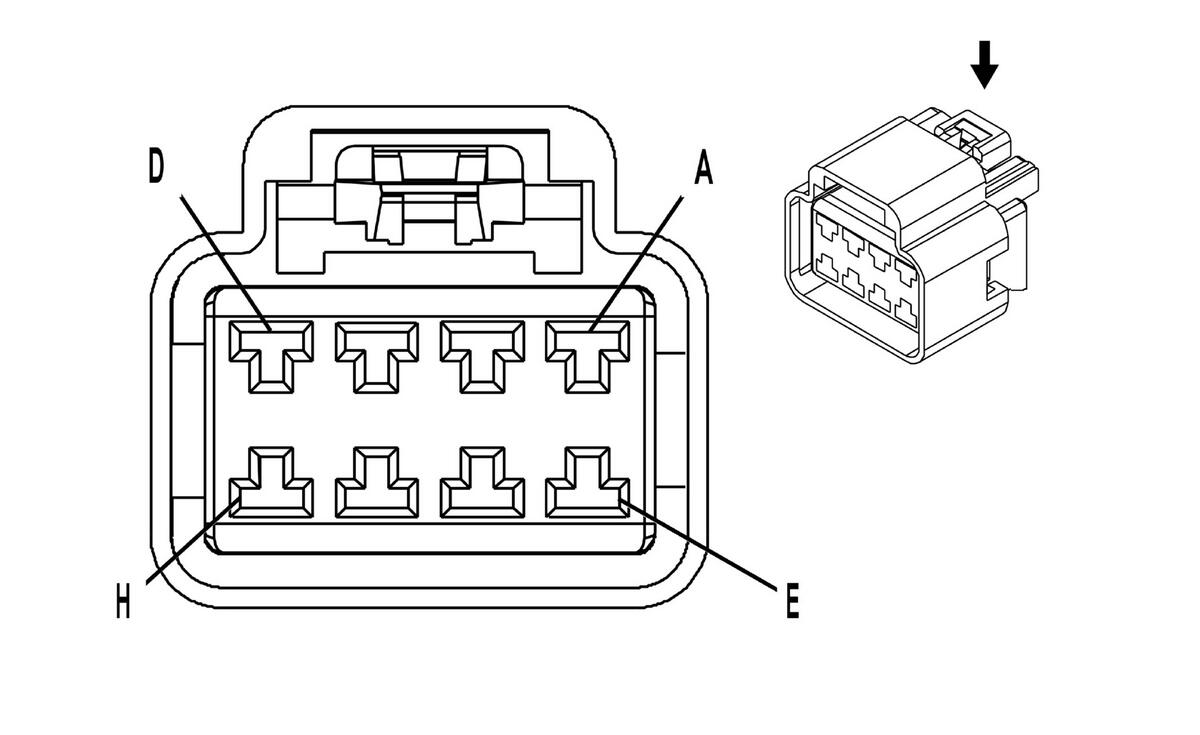

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 15326924
- Service Connector: 19153751
- Description: 8-Way F GT 280 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575756 |
J-35616-4A (PU) |
J-38125-553 |
15304713 |
19 |
F |
D |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1.5 |
D-BU |
286 |
Driver Power Seat Front Vertical Motor Up Control |
I |
- |
| B |
1.5 |
BK |
2150 |
Ground |
I |
- |
| C |
1.5 |
YE |
285 |
Driver Power Seat Horizontal Motor Forward Control |
I |
- |
| D |
1.5 |
RD |
702 |
Battery Positive Voltage |
I |
- |
| E |
1.5 |
WH |
282 |
Driver Power Seat Rear Vertical Motor Up Control |
I |
- |
| F |
1.5 |
BN |
284 |
Driver Power Seat Horizontal Motor Rearward Control |
I |
- |
| G |
1.5 |
D-GN |
283 |
Driver Power Seat Rear Vertical Motor Down Control |
I |
- |
| H |
1.5 |
GY |
287 |
Driver Power Seat Front Vertical Motor Down Control |
I |
- |
