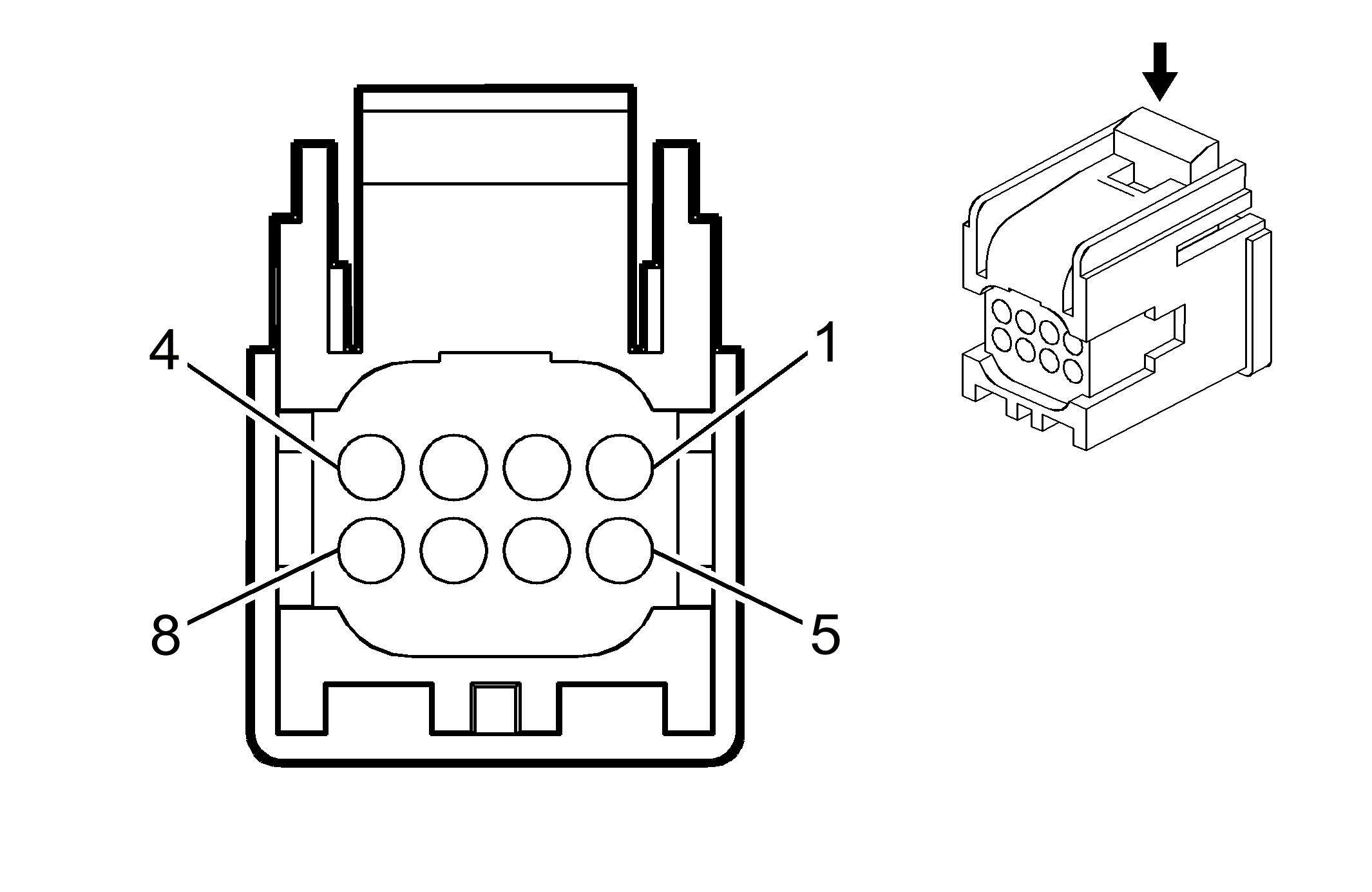

S38 Ignition Mode Switch (BTM)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 15480082
- Service Connector: 19149303
- Description: 8-Way F 0.64 Micro-Pack Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
BN/BK |
5720 |
Ignition Mode Switch Accessory LED Signal |
I |
- |
| 3 |
0.5 |
L-GN/BK |
3558 |
Passive Start Switch Signal 2 |
I |
- |
| 4 |
0.5 |
BK |
1650 |
Ground |
I |
- |
| 5 |
0.5 |
D-BU/BK |
5719 |
Ignition Mode Switch Start LED Signal |
I |
- |
| 6 |
0.5 |
D-BU/L-GN |
5723 |
Ignition Mode Switch Mode Voltage |
I |
- |
| 7 |
0.5 |
BK/GY |
3559 |
Passive Start Switch 2 Low Reference |
I |
- |
| 8 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
