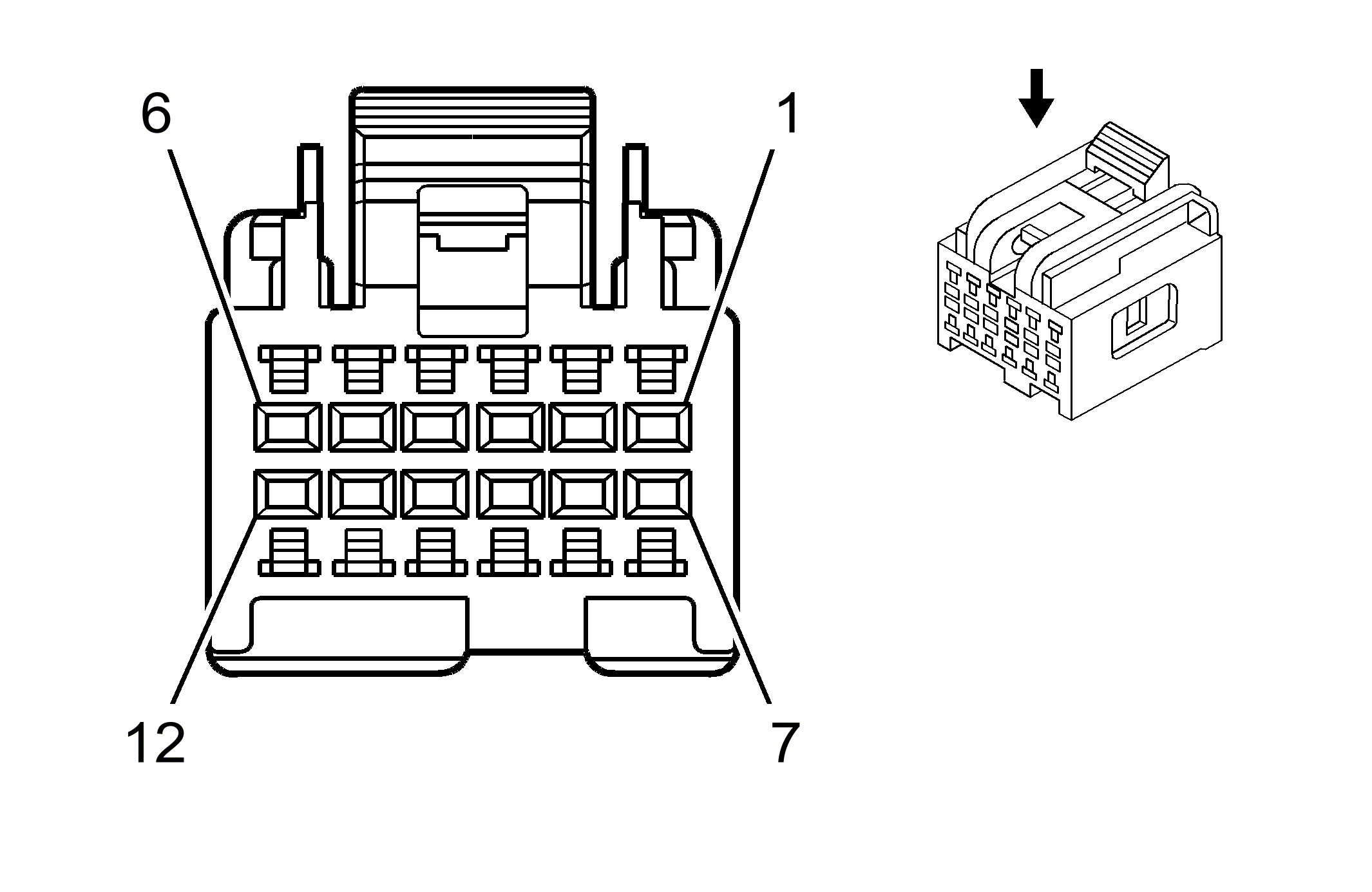

S30 Headlamp Switch
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 15483208
- Service Connector: 88988229
- Description: 12-Way F Micro HVT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575550 |
J-35616-16 (LT GN) |
J-38125-559 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
7556 |
Lighting Control Switch Reference |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
L-GN/GY |
13 |
Headlamp Switch Park Lamp Signal |
I |
- |
| 4 |
0.5 |
WH/VT |
103 |
Headlamp Switch On Signal |
I |
- |
| 5 |
0.5 |
L-GN/BN |
306 |
Headlamp Switch Headlamps Off Signal Control |
I |
- |
| 6 |
0.5 |
BK |
1650 |
Ground |
I |
- |
| 7 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 8 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
WH/BN |
7555 |
Lighting Control Switch Signal |
I |
- |
