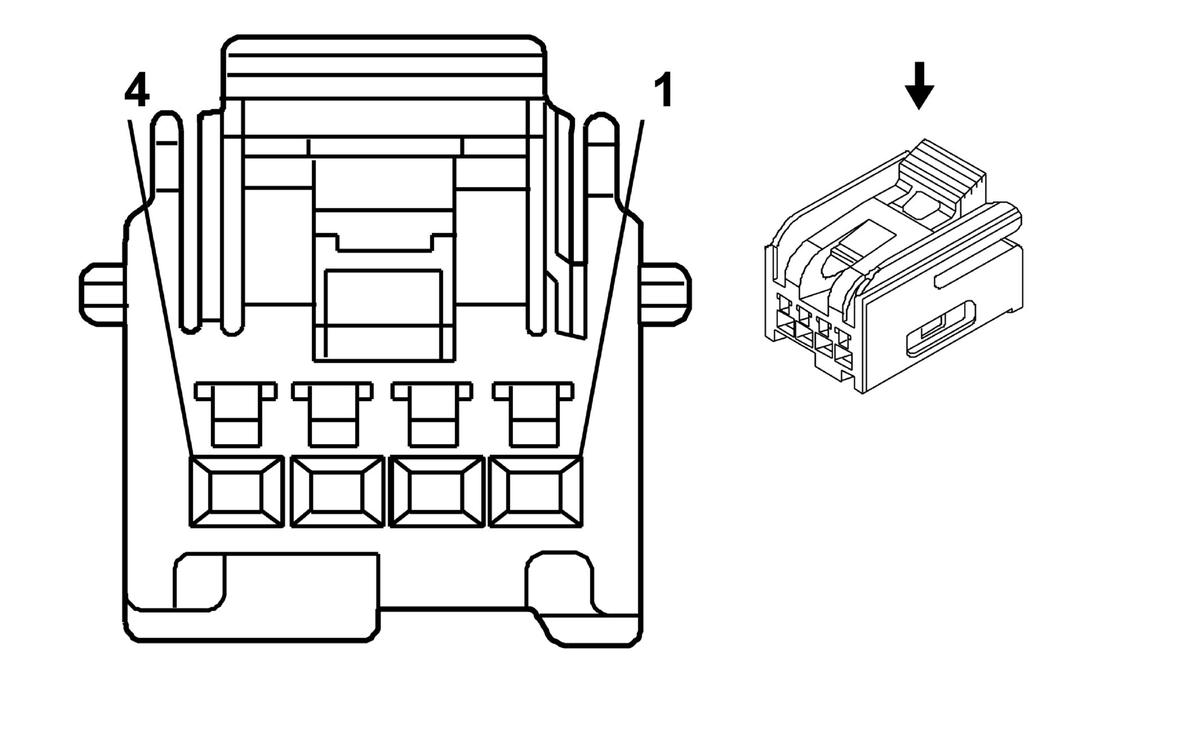

S13D Door Lock Switch - Driver
|
|
Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13513469
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 4-Way F Micro HVT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 2 |
0.5 |
BN/VT |
245 |
Passenger Door Lock Switch Unlock Control |
I |
- |
| 3 |
0.5 |
BK |
1550 |
Ground |
I |
- |
| 4 |
0.5 |
YE/VT |
244 |
Passenger Door Lock Switch Lock Control |
I |
- |
