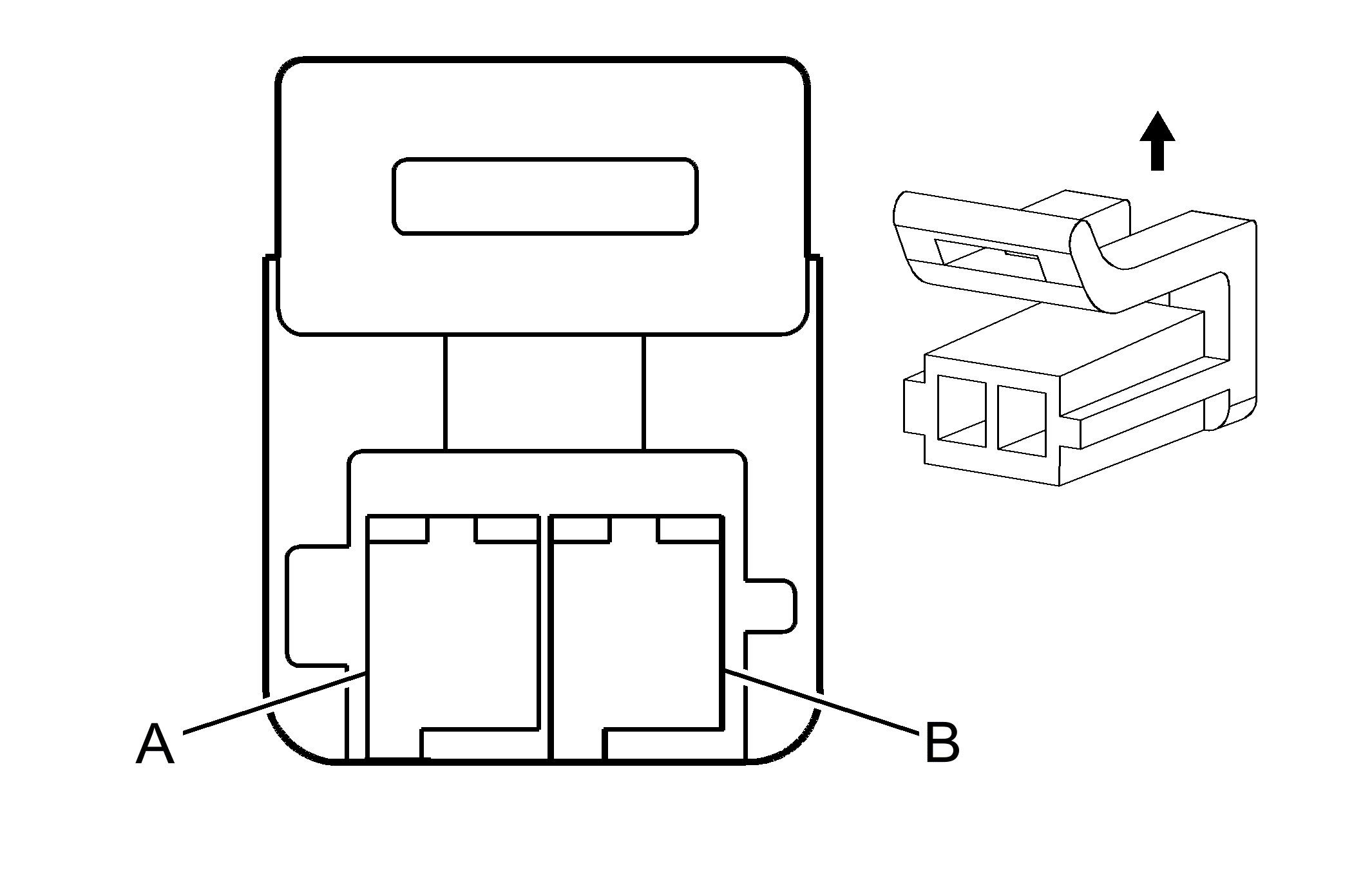

Q8 Control Solenoid Valve Assembly X4 (MH8)
|
|
Connector Part Information
- Harness Type: Automatic Transmission
- OEM Connector: 13543034
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F Metri Pack 150.2 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Component Assembly |
J-35616-14 (GN) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
WH |
- |
OSS High Signal |
I |
- |
| B |
0.5 |
BK |
- |
OSS Low Signal |
I |
- |
