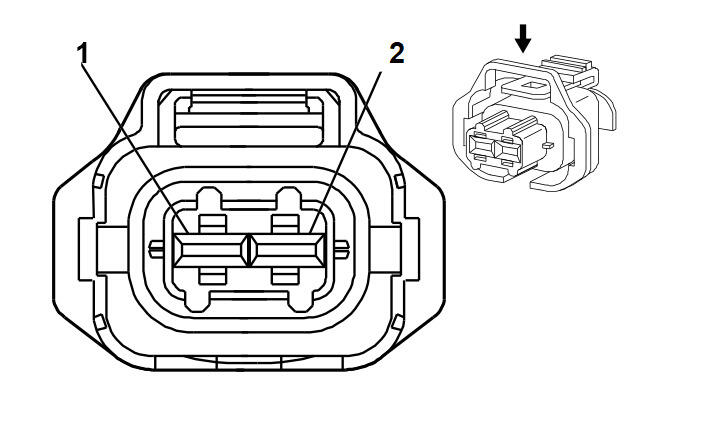

Q62 Reductant Purge Solenoid Valve
|
|
Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: 1928403874
- Service Connector: 88988963
- Description: 2-Way F Kompakt 280 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness |
J-35616-35 (VT) |
J-38125-561 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN |
3101 |
DEF Reverting Valve High Control |
I |
- |
| 2 |
0.5 |
BK |
3102 |
DEF Reverting Valve Low Control |
I |
- |
