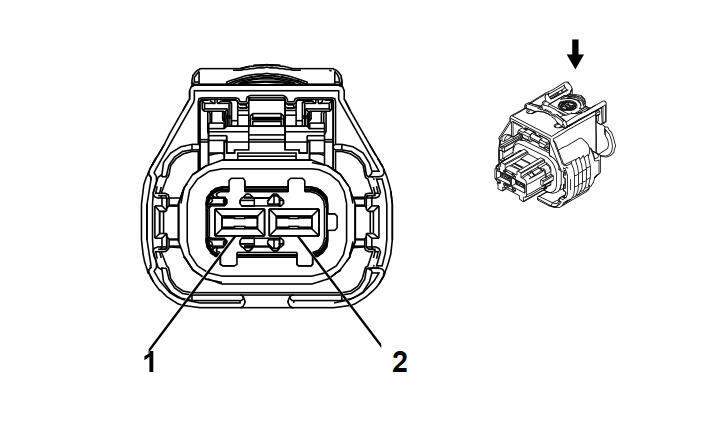

Q61 Reductant Injector (LUZ)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 1928405714
- Service Connector: 13384371
- Description: 2-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/WH |
3100 |
DEF Dosing Valve Low Control |
I |
- |
| 2 |
0.5 |
BN |
3099 |
DEF Dosing Valve High Control |
I |
- |
