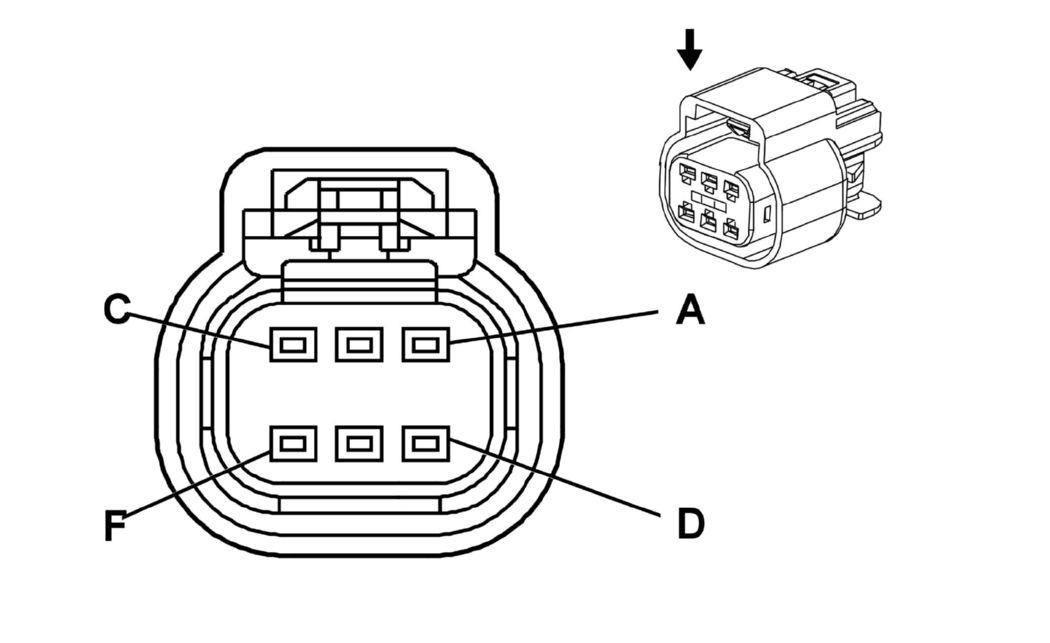

Q38 Throttle Body (LUW/LWE)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 55565697
- Service Connector: 19329636
- Description: 6-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
BN/WH |
582 |
Throttle Actuator Control Close |
I |
LUW/LWE |
| B |
0.5 |
YE |
581 |
Throttle Actuator Control Open |
I |
LUW/LWE |
| C |
0.5 |
BK/BN |
2752 |
Throttle Position Sensor Low Reference |
I |
LUW/LWE |
| D |
0.5 |
BN/GN |
485 |
Throttle Position Sensor Signal (1) |
I |
LUW/LWE |
| E |
0.5 |
BN/RD |
2701 |
Throttle Position Sensor 5 Volt Reference |
I |
LUW/LWE |
| F |
0.5 |
BN/BU |
486 |
Throttle Position Sensor Signal (2) |
I |
LUW/LWE |
