Q22 Intake Manifold Tuning Solenoid Valve (LUW/LWE)
|
|

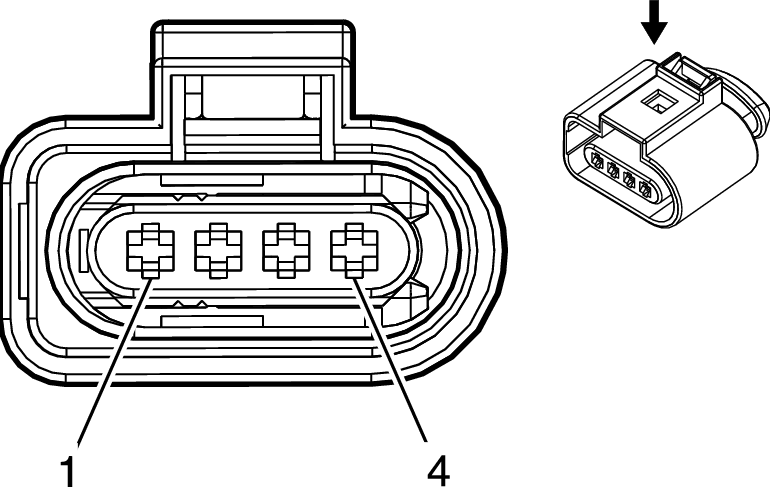

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13167844
- Service Connector: 13355783
- Description: 4-Way F 1.5 Mini-Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/BU |
5293 |
Powertrain Main Relay Fused Supply (4) |
I |
LUW/LWE |
| 2 |
0.5 |
BK |
150 |
Ground |
I |
LUW/LWE |
| 3 |
0.5 |
BU |
7302 |
Intake Manifold Tuning Valve (IMTV) Control - Signal |
I |
LUW/LWE |
| 4 |
0.5 |
GY/GN |
7303 |
Intake Manifold Tuning Valve (IMTV) Position - Signal |
I |
LUW/LWE |
