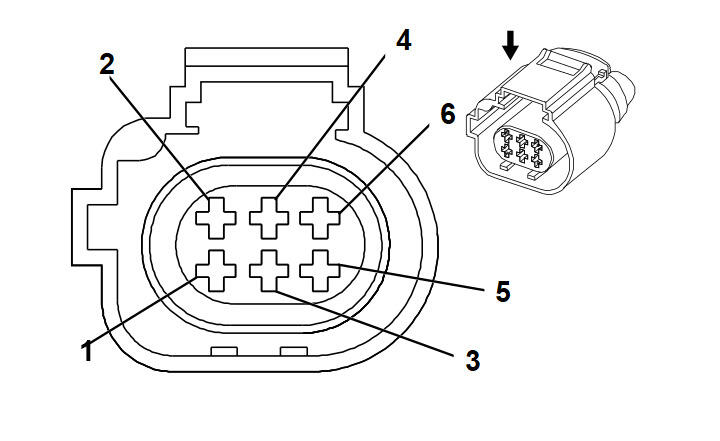

Q14 Exhaust Gas Recirculation Valve (LUZ)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 284716-3
- Service Connector: 13586128
- Description: 6-Way F 1.6 Micro Timer Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/RD |
5047 |
Exhaust Gas Recirculation 5 Volt Reference (1) |
I |
- |
| 2 |
0.75 |
VT/BK |
5746 |
Exhaust Gas Recirculation Valve Motor Low Signal |
I |
- |
| 3 |
0.5 |
BK/BN |
2753 |
Exhaust Gas Recirculation Sensor Low Reference |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
BN/WH |
5763 |
Exhaust Gas Recirculation Valve Sensor Signal |
I |
- |
| 6 |
0.75 |
WH/VT |
5764 |
Exhaust Gas Recirculation Valve Motor High Signal |
I |
- |
