K20 Engine Control Module X2 (LUZ)

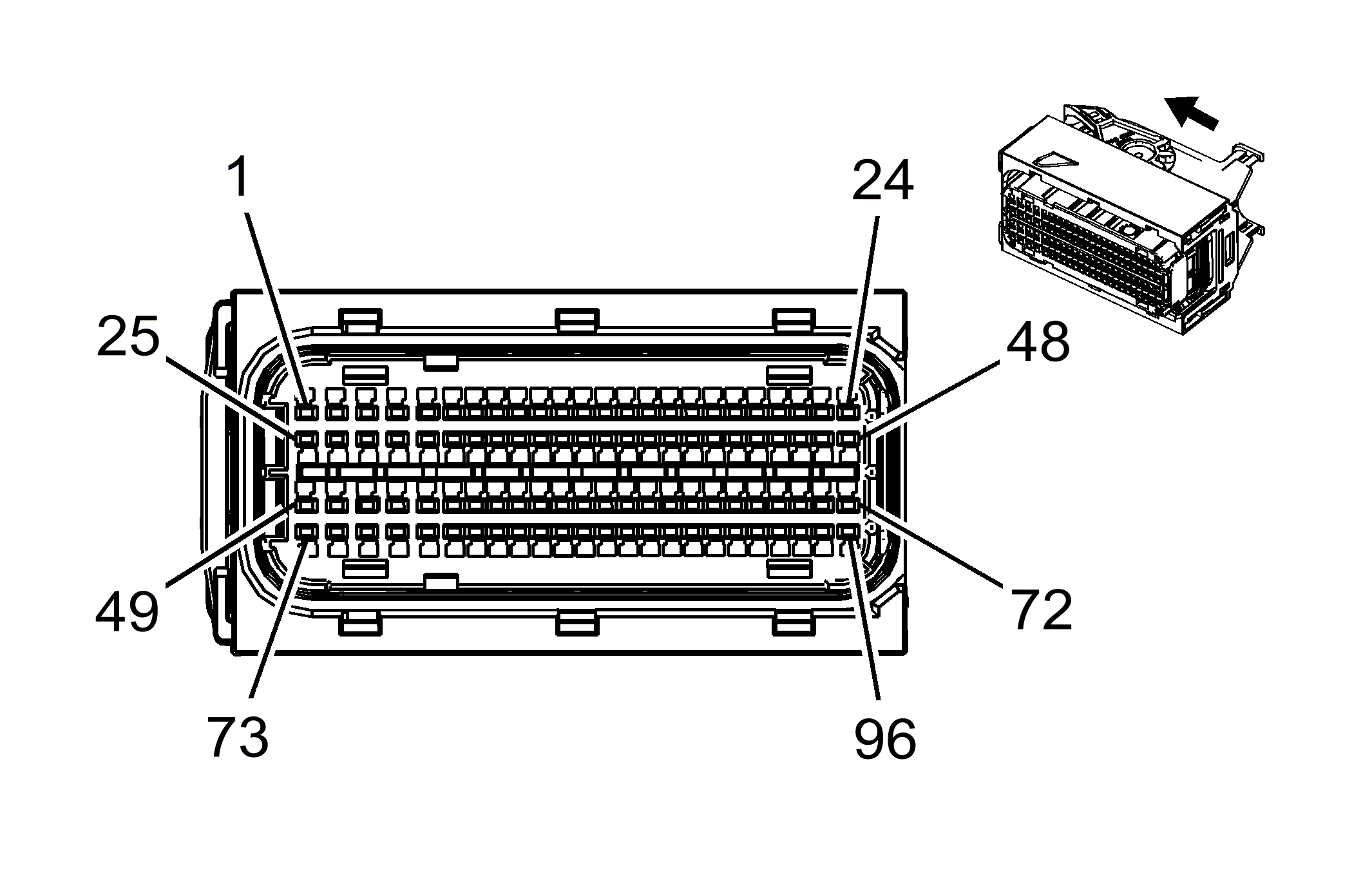

GM2216909
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13292742
  • Service Connector: 13384307
  • Description: 96-Way F 0.6, 1.5 MQS, 2.8 Series, Sealed (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 19331730 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
II 19331733 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 1.5 BN/WH 4901 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1 I -
2 1.5 BU/WH 4904 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4 I -
3 - - - Not Occupied - -
4 0.75 YE 581 Throttle Actuator Control Open II -
5 0.5 BK/VT 2755 Oil Pressure Sensor Low Reference II -
6 - 7 - - - Not Occupied - -
8 0.5 BN/RD 2917 Fuel Rail Pressure Sensor 5 Volt Reference II -
9 0.5 GY/RD 2704 Manifold Absolute Pressure Sensor 5 Volt Reference II -
10 0.5 GY/YE 5297 Camshaft Position Exhaust Sensor Control (1) II -
11 0.5 WH/RD 3201 Throttle Inlet Absolute Pressure Sensor 5 Volt Reference II -
12 - - - Not Occupied - -
13 0.5 GY/RD 5928 Variable Nozzle Turbo Position Sensor 5 Volt Reference II -
14 - - - Not Occupied - -
15 0.5 WH/RD 2705 Oil Pressure Sensor 5 Volt Reference II -
16 - - - Not Occupied - -
17 0.5 WH 7494 High Speed GMLAN Serial Data (-) (3) II -
18 0.5 YE/RD 3106 DEF Pressure Sensor 5 Volt Reference II -
19 0.5 BU/RD 5047 Exhaust Gas Recirculation 5 Volt Reference (1) II -
20 0.5 BN/YE 3108 DEF Pressure Sensor Signal II -
21 0.5 BN/RD 2701 Throttle Position Sensor 5 Volt Reference II -
22 0.5 GN/GY 465 Fuel Pump Primary Relay Control II -
23 0.5 YE/BK 625 Starter Enable Relay Control II -
24 0.5 BU/WH 2530 Fuel Rail Pressure Solenoid Control II -
25 1.5 BN 4801 Direct Fuel Injector (DFI) High Voltage Control Cylinder 1 I -
26 1.5 BN/YE 4804 Direct Fuel Injector (DFI) High Voltage Control Cylinder 4 I -
27 - - - Not Occupied - -
28 0.75 BN/WH 582 Throttle Actuator Control Close II -
29 0.5 BK/GN 469 Manifold Absolute Pressure Sensor Low Reference II -
30 0.5 BK/GN 2919 Fuel Rail Pressure Sensor Low Reference II -
31 0.5 BN 3681 Charge Air Cooler Outlet Temperature Sensor Signal II -
32 0.5 YE/BU 3680 Charge Air Cooler Outlet Temperature Sensor Low Reference II -
33 0.5 YE/GN 3236 Exhaust Gas Recirculation Temperature Sensor 2 Signal II -
34 - - - Not Occupied - -
35 0.5 YE/BN 331 Oil Pressure Sensor Signal II -
36 - - - Not Occupied - -
37 0.5 VT/YE 5947 Variable Nozzle Turbo Position Sensor Signal II -
38 - - - Not Occupied - -
39 0.5 BK/BN 5929 Variable Nozzle Turbo Position Sensor Low Reference II -
40 0.5 BK/GY 6052 Mass Air Flow Sensor Low Reference II -
41 0.5 BU/BK 7493 High Speed GMLAN Serial Data (+) (3) II -
42 0.5 BK/GN 3107 DEF Pressure Sensor Low Reference II -
43 0.5 BK/GY 5296 Camshaft Position Exhaust Sensor Low Reference (1) II -
44 0.5 GN 573 Crankshaft Position Sensor Signal (1) II -
45 0.5 BK/VT 574 Crankshaft Position Sensor Low Reference (1) II -
46 0.5 BK/VT 3104 DEF Smart Pump Low Reference II -
47 0.75 WH/BK 5931 Variable Nozzle Turbo Solenoid Low Signal II -
48 0.5 YE 2928 Fuel Metering Valve High Control II -
49 1.5 GN 4803 Direct Fuel Injector (DFI) High Voltage Control Cylinder 3 I -
50 1.5 BU 4802 Direct Fuel Injector (DFI) High Voltage Control Cylinder 2 I -
51 - - - Not Occupied - -
52 0.75 WH/VT 5764 Exhaust Gas Recirculation Valve Motor High Signal II -
53 - - - Not Occupied - -
54 0.5 YE/WH 3200 Throttle Inlet Absolute Pressure Sensor Signal II -
55 0.5 BK/BN 2752 Throttle Position Sensor Low Reference II -
56 0.5 WH/BU 6289 Induction Air Temperature Sensor Signal II -
57 0.5 BK/YE 6275 Exhaust Gas Recirculation Temperature Sensor 2 Low Reference II -
58 0.5 GN/BN 507 Wait To Start Indicator Control II -
59 0.5 GY/GN 5378 Exhaust Gas Temperature Sensor (3) II -
60 0.5 BU 3105 DEF Smart Pump Control II -
61 0.5 BN/GN 485 Throttle Position Sensor Signal (1) II -
62 0.5 BN/WH 5763 Exhaust Gas Recirculation Valve Sensor Signal II -
63 0.5 RD/WH 140 Battery Positive Voltage II -
64 0.5 VT/BK 5273 Camshaft Position Exhaust Sensor (1) II -
65 0.5 BN/GN 1174 Oil Level Switch Signal II -
66 0.5 YE/BK 3682 Charge Air Cooler Inlet Temperature Sensor Low Reference II -
67 0.5 GN 3683 Charge Air Cooler Inlet Temperature Sensor Signal II -
68 0.5 BK/GN 3657 Exhaust Gas Temperature Sensor 3 Low Reference II -
69 0.5 BK/BU 6783 Exhaust Gas Temperature Sensor 2 Low Reference II -
70 0.5 GN/GY 7316 Variable Swirl Valve PWM Control Signal II -
71 0.75 BN/GY 435 Exhaust Gas Recirculation Solenoid Control II -
72 0.5 BN/BK 2929 Fuel Metering Valve Low Control II -
73 1.5 GN/GY 4903 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3 I -
74 1.5 BU/GY 4902 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2 I -
75 - - - Not Occupied - -
76 0.75 VT/BK 5746 Exhaust Gas Recirculation Valve Motor Low Signal II -
77 0.5 BK/BN 2761 Coolant Temperature Sensor Low Reference II -
78 0.5 GY 3103 DEF Smart Pump Control II -
79 0.5 BK/VT 2760 Intake Air Temperature Sensor Low Reference II -
80 - 81 - - - Not Occupied - -
82 0.5 GY/VT 7368 Variable Swirl and Actuator Position Signal II -
83 0.5 BU 410 Engine Coolant Temperature Sensor Signal II -
84 0.5 BU/GN 5377 Exhaust Gas Temperature Sensor (2) II -
85 0.5 GN/WH 432 Manifold Absolute Pressure Sensor Signal II -
86 0.5 BU/WH 2918 Fuel Rail Pressure Sensor Signal II -
87 0.5 BN/WH 419 Check Engine Indicator Control II -
88 - 91 - - - Not Occupied - -
92 0.5 GN/WH 492 Mass Air Flow Sensor Signal II -
93 0.5 BK/BN 2753 Exhaust Gas Recirculation Sensor Low Reference II -
94 - - - Not Occupied - -
95 0.75 YE/BU 1497 Crankcase Ventilation (Blowby) Heater Control Signal II -
96 0.5 BK/YE 2834 Fuel Rail Pressure Solenoid Low Reference II -
