K20 Engine Control Module X1 (LUZ)

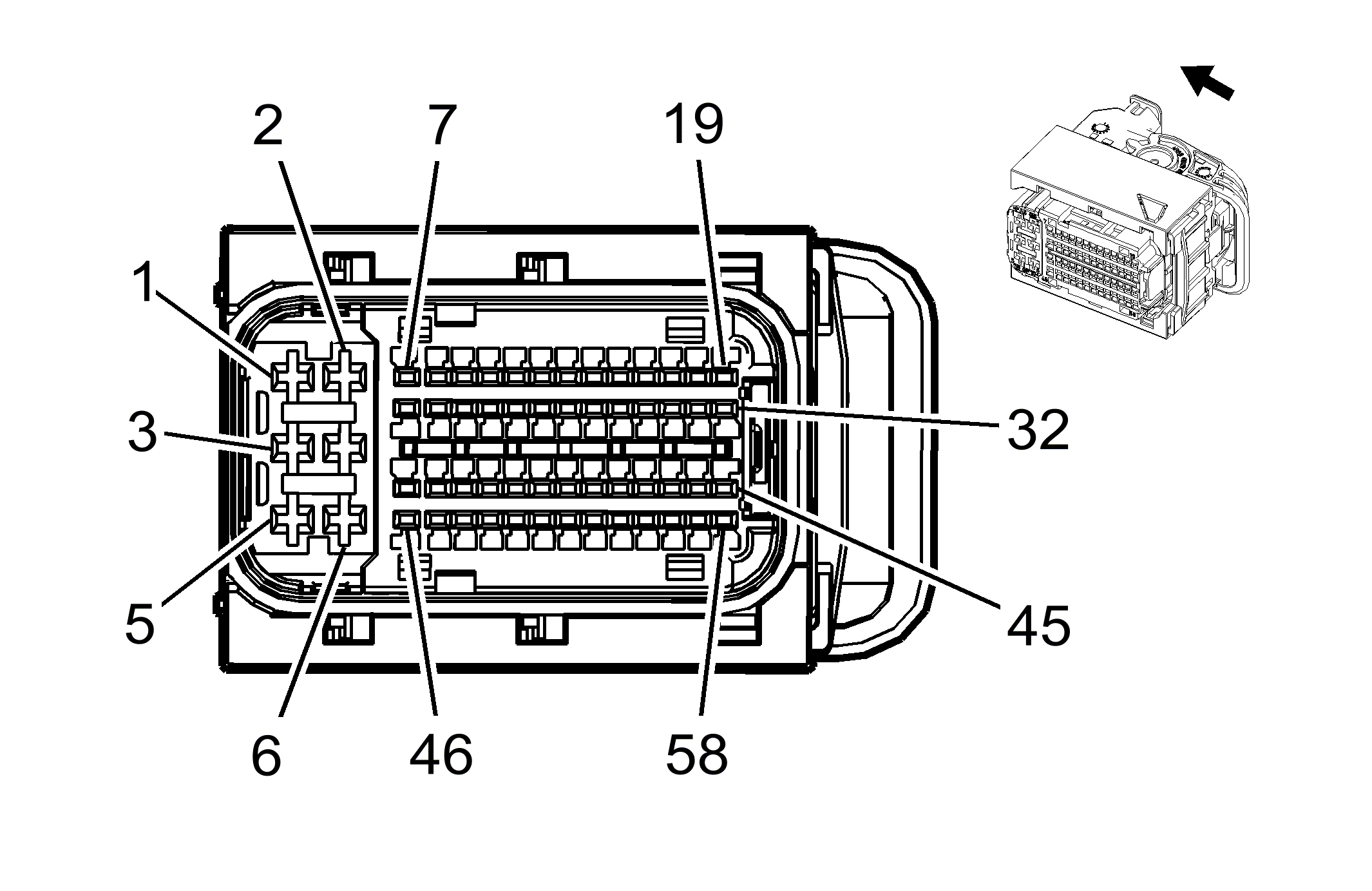

GM2534516
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13292741
  • Service Connector: 13384306
  • Description: 58-Way F 1.2 MCP, 2.8 BTS Series, Sealed
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13582182 J-35616-35 (VT) J-38125-12A Not Available Not Available Not Available Not Available
II 19331733 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 2.5 VT/BU 5290 Powertrain Main Relay Fused Supply (1) I -
2 2.5 BK/WH 451 Signal Ground I -
3 2.5 VT/BU 5290 Powertrain Main Relay Fused Supply (1) I -
4 2.5 BK/WH 451 Signal Ground I -
5 2.5 VT/BU 5290 Powertrain Main Relay Fused Supply (1) I -
6 2.5 BK/WH 451 Signal Ground I -
7 0.5 WH/BK 3102 DEF Reverting Valve Low Control II -
8 0.5 WH/BN 3237 Exhaust Gas Recirculation Temperature Sensor Signal II -
9 0.5 BU/WH 5277 Exhaust Gas Temperature Sensor (1) II -
10 0.5 BN/GY 7072 Sensor Fuel Temperature 1 Signal II -
11 0.5 WH/GN 5380 Brake Position Sensor Signal II -
12 0.5 BK/BN 5514 A/C Refrigerant Pressure Sensor Low Reference II -
13 0.75 GY/WH 3113 Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1) II -
14 0.5 BN 25 Charge Indicator Control II -
15 0.5 BN/RD 1274 Accelerator Pedal Position 5 Volt Reference (2) II -
16 0.5 WH/RD 5381 Brake Position Sensor 5 Volt Reference II -
17 0.5 BN/RD 2700 A/C Pressure Sensor 5 Volt Reference II -
18 0.5 WH/RD 6054 Exhaust Pressure Sensor 5 Volt Reference (1) II -
19 0.5 WH/RD 1164 Accelerator Pedal Position 5 Volt Reference (1) II -
20 0.5 GN 3101 DEF Reverting Valve High Control II -
21 0.5 GN 380 A/C Refrigerant Pressure Sensor Signal II -
22 0.5 BK/BN 6782 Exhaust Gas Temperature Sensor 1 Low Reference II -
23 0.5 BU/VT 1589 Primary Fuel Level Sensor Signal II -
24 0.5 WH/BU 6311 Cruise/ETC/TCC Brake Signal II -
25 0.5 BK/GN 6281 Fuel Level Sensor Low Reference II -
26 0.5 BN/GY 4008 Humidity Sensor Signal II -
27 0.5 VT/YE 5985 Accessory Wakeup Serial Data II -
28 0.5 VT/GY 139 Run/Crank Ignition 1 Voltage II -
29 0.5 YE 5991 Powertrain Relay Coil Control II -
30 0.5 BK/YE 5382 Brake Position Sensor Low Reference II -
31 0.75 YE/BN 179 Oil Pump Command Signal II -
32 - - - Not Occupied - -
33 0.5 BN/WH 3100 DEF Dosing Valve Low Control II -
34 - 35 - - - Not Occupied - -
36 0.5 BU/YE 6861 Water In Fuel Sensor Signal II -
37 0.5 BK/VT 1272 Accelerator Pedal Position Low Reference (2) II -
38 0.5 BU 6053 Exhaust Pressure Sensor Signal (1) II -
39 0.5 GN/WH 1162 Accelerator Pedal Position Signal (2) II -
40 0.5 YE/GY 6936 Heated Oxygen Sensor Collector Signal II -
41 0.5 BN/WH 6933 Heated Oxygen Sensor Current Pump Signal II -
42 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1) II -
43 0.5 BU 2500 High Speed GMLAN Serial Data (+) (1) II -
44 0.5 BK/BU 1271 Accelerator Pedal Position Low Reference (1) II -
45 0.5 WH/BK 2366 Cooling Fan Control Relay Speed Signal II -
46 0.5 BN 3099 DEF Dosing Valve High Control II -
47 0.5 WH/GY 1786 Transmission Park/Neutral Signal (1) II -
48 0.5 BK/BU 6274 Exhaust Gas Recirculation Temperature Sensor Low Reference II -
49 0.5 GY 23 Generator Field Duty Cycle Signal II -
50 0.5 BK/YE 6055 Exhaust Pressure Sensor Low Reference (1) II -
51 0.5 YE/WH 1161 Accelerator Pedal Position Signal (1) II -
52 0.5 BN 6934 Heated Oxygen Sensor Ground II -
53 - - - Not Occupied - -
54 0.5 BN/WH 7073 Sensor Fuel Temperature 1 Low Reference II -
55 - 56 - - - Not Occupied - -
57 0.5 WH/GY 459 A/C Compressor Clutch Relay Control II -
58 0.5 BU 3017 Fuel Heater Relay Control 1 II -
