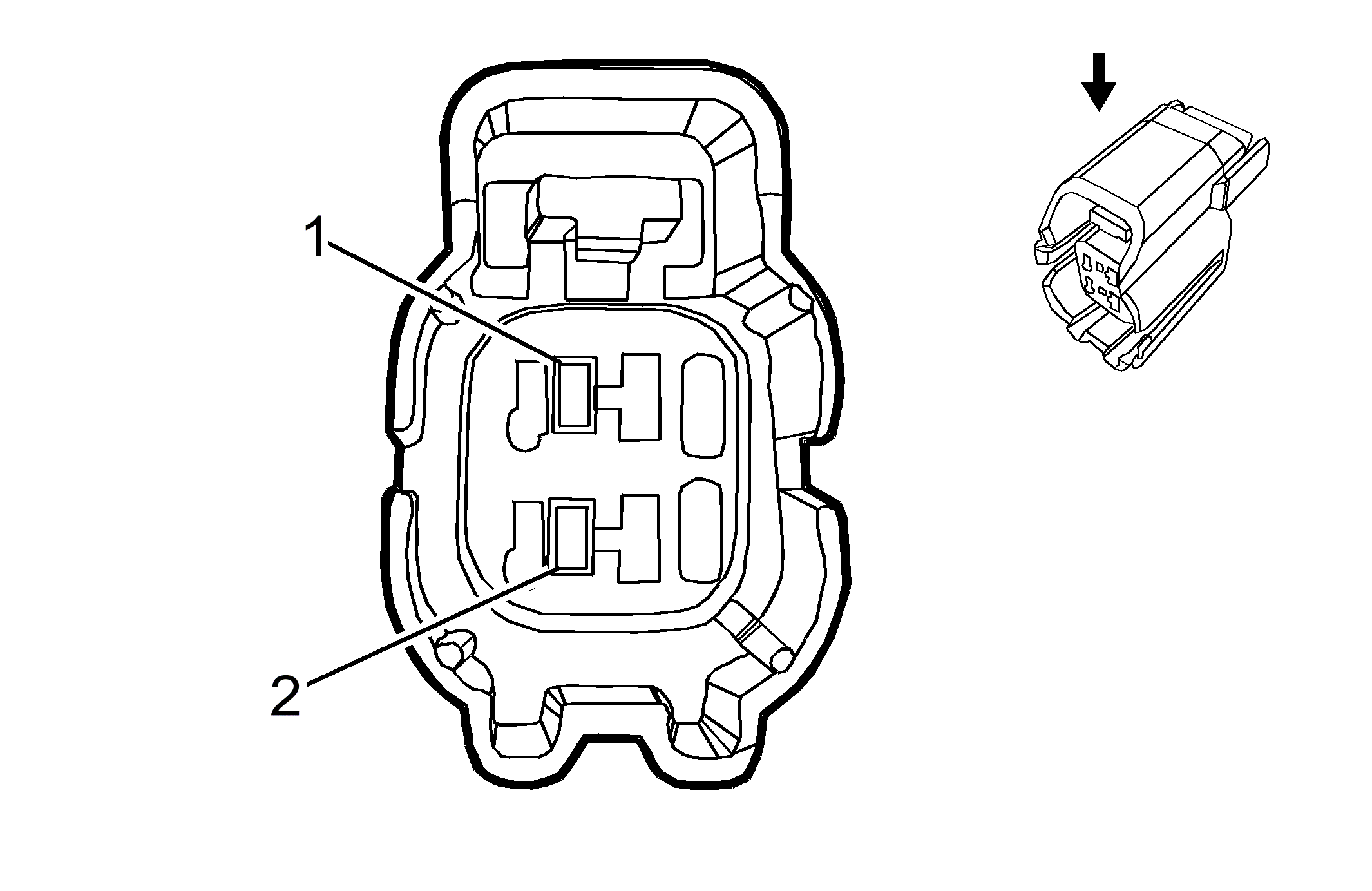

P19AG Speaker - Left Front Door
|
|
Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13699622
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 150 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-2A (GY) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN/D-BU |
118 |
Left Front Speaker Signal (-) (1) |
I |
- |
| 2 |
0.75 |
D-BU |
201 |
Left Front Speaker (+) (1) |
I |
- |
