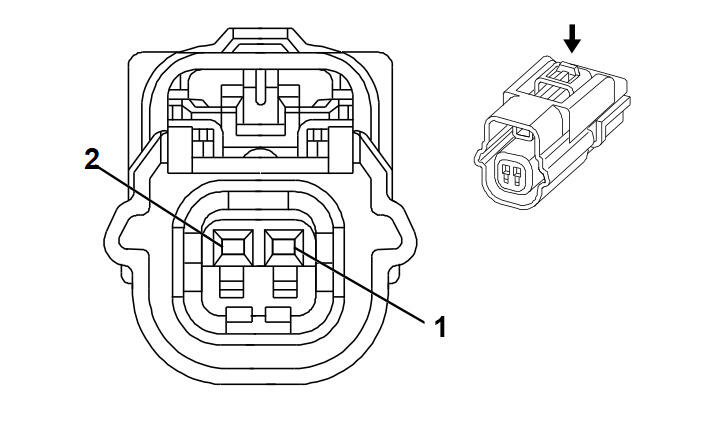

K85 Passenger Presence Detection Module X2
|
|
Connector Part Information
- Harness Type: Passenger Presence Detection Sensor
- OEM Connector: Not Available
- Service Connector: Service by Component Assembly - See Part Catalog
- Description: 2-Way F Kaizen 64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service Connector: Service by Component Assembly - See Part Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK |
- |
Occupant Pressure Sensor Signal |
I |
- |
| 2 |
- |
WH |
- |
Occupant Pressure Sensor Voltage Reference |
I |
- |
