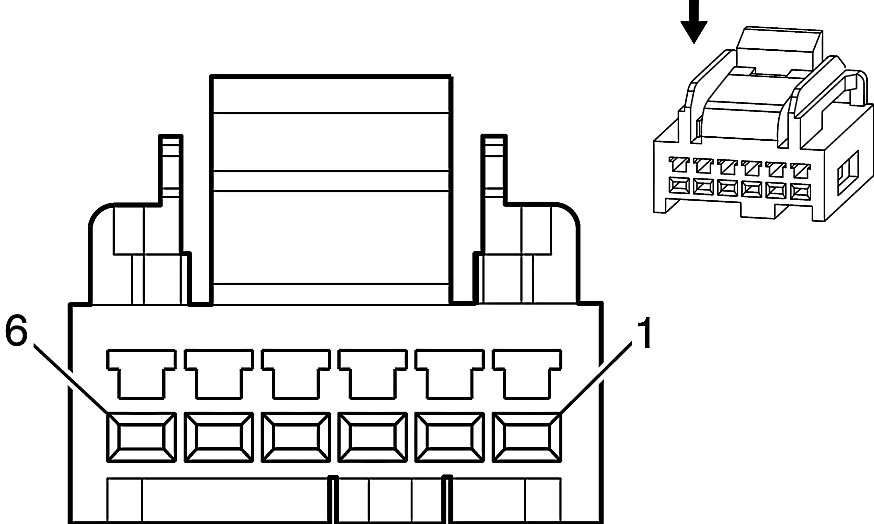

K85 Passenger Presence Detection Module X1
|
|
Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 15499927
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F Micro Pack HVT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575550 |
J-35616-16 (L-GN) |
J-38125-559 |
15445905 |
23 |
J |
J |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
D-BU |
402 |
Battery Positive Voltage |
I |
- |
| 2 |
0.5 |
WH |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 3 |
0.5 |
WH |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 4 |
0.5 |
BK |
2450 |
Ground |
I |
- |
| 5-6 |
- |
- |
- |
Not Occupied |
- |
- |
