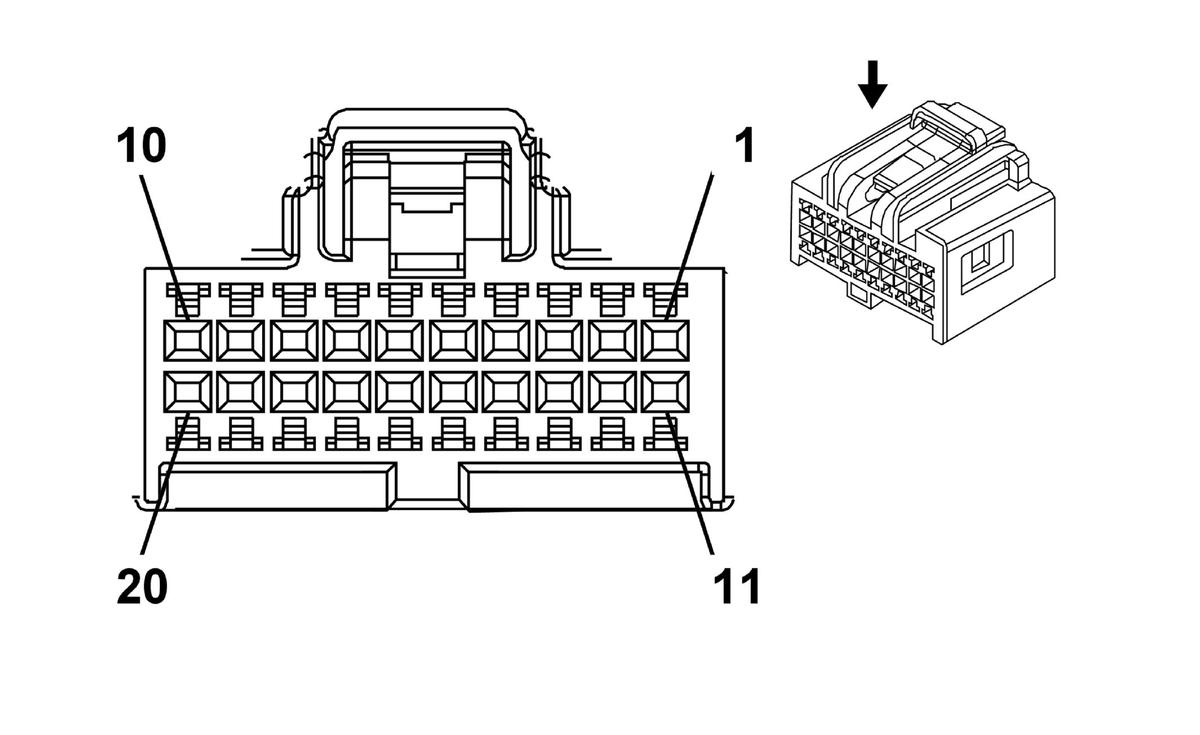

K84 Keyless Entry Control Module X4 (ATH)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13782500
- Service Connector: 13578571
- Description: 20-Way F Micro HVT Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575550 |
J-35616-16 (LT GN) |
J-38125-559 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE/GY |
6158 |
Right Rear Door Handle Switch Signal |
I |
- |
| 2 |
0.35 |
BN/YE |
6157 |
Left Rear Door Handle Switch Signal |
I |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
GY/D-BU |
3576 |
Passenger Door Exterior Switch Lock Signal |
I |
- |
| 6 |
0.5 |
VT |
3560 |
Passive Entry Driver Door Antenna Signal Hi |
I |
- |
| 7 |
0.5 |
VT/GY |
3561 |
Passive Entry Driver Door Antenna Signal Lo |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
L-GN/BK |
3563 |
Passive Entry Passenger Door Antenna Signal Lo |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
VT/WH |
3571 |
Passenger Door Handle Switch Signal |
I |
- |
| 12 |
0.35 |
L-GN/WH |
3570 |
Driver Door Handle Switch Signal |
I |
- |
| 13 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
L-GN/WH |
6655 |
Driver Door Unlatch Switch Signal |
I |
- |
| 16 |
0.5 |
BN/L-GN |
3568 |
Passive Entry Rear Closure Antenna Signal Hi |
I |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.5 |
L-GN/GY |
3569 |
Passive Entry Rear Closure Antenna Signal Lo |
I |
- |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.5 |
L-GN/YE |
3562 |
Passive Entry Passenger Door Antenna Signal Hi |
I |
- |
