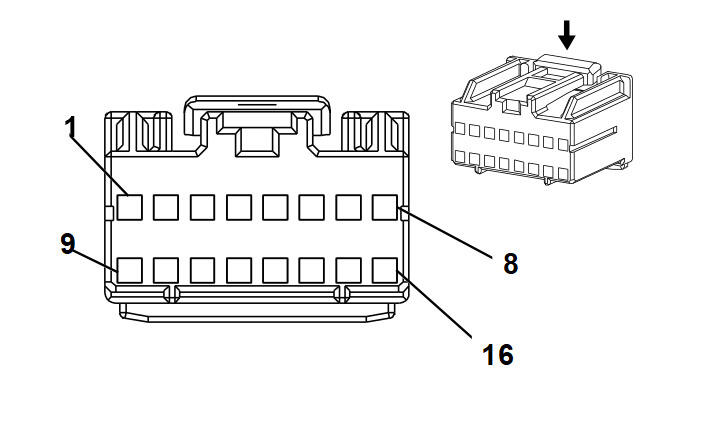

K73 Telematics Communication Interface Control Module X1 (UE1)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 15431362
- Service Connector: 15306351
- Description: 16-Way F Micro-Pack 100A Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575548 |
J-35616-16 (LT GN) |
J-38125-559 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 2 |
0.35 |
BN/WH |
2517 |
Keypad Red LED Control |
I |
- |
| 3 |
0.35 |
YE/VT |
2516 |
Keypad Green LED Control |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
L-GN/BK |
2515 |
Keypad Control |
I |
- |
| 7 |
0.5 |
BK |
1750 |
Ground |
I |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
D-BU |
2500 |
High Speed GMLAN Serial Data (+) (1) |
I |
- |
| 11 |
0.35 |
L-GN/WH |
2514 |
Keypad Signal |
I |
- |
| 12 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) (1) |
I |
- |
| 13 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.5 |
RD/D-BU |
840 |
Battery Positive Voltage |
I |
- |
| 16 |
- |
- |
- |
Not Occupied |
- |
- |
