K38 Chassis Control Module

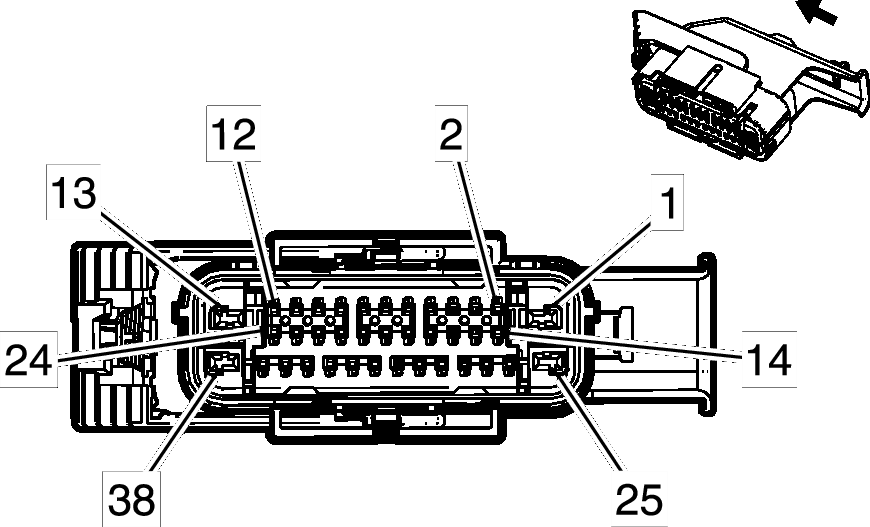

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13578883	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
II	13575392	J-35616-4A (PU)	J-38125-553	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	2.5	RD/GY	1740	Battery Positive Voltage	II	-
2	-	-	-	Not Occupied	-	-
3	0.5	GY/BK	3437	Shutter Valve Solenoid Control	I	-
4	-	-	-	Not Occupied	-	-
5	0.5	D-BU	2500	High Speed GMLAN Serial Data (+) (1)	I	-
6	0.5	D-BU	2500	High Speed GMLAN Serial Data (+) (1)	I	-
7	-	-	-	Not Occupied	-	-
8	0.5	WH/D-BU	5986	Serial Data Communication Enable	I	-
9	-	-	-	Not Occupied	-	-
10	0.35	D-BU/WH	7446	Fuel Line Pressure Sensor Signal	I	-
11	-	-	-	Not Occupied	-	-
12	0.5	GY/BK	3437	Shutter Valve Solenoid Control	I	-
13	2.5	GY	120	Fuel Pump Control	II	-
14 - 16	-	-	-	Not Occupied	-	-
17	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	-
18	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	-
19	-	-	-	Not Occupied	-	-
20	0.5	L-GN/GY	465	Fuel Pump Primary Relay Control	I	-
21	0.5	VT/BK	739	Run/Crank Ignition 1 Voltage	I	-
22	0.35	BN/RD	7445	Fuel Line Pressure Sensor 5 Volt Reference	I	-
23	0.35	BK/YE	7447	Fuel Line Pressure Sensor Low Reference	I	-
24	0.5	BK	120	Fuel Pump Control	I	-
25	2.5	BK	2350	Ground	II	-
26 - 37	-	-	-	Not Occupied	-	-
38	2.5	BK/D-GN	1580	Fuel Pump Low Reference	II	-
