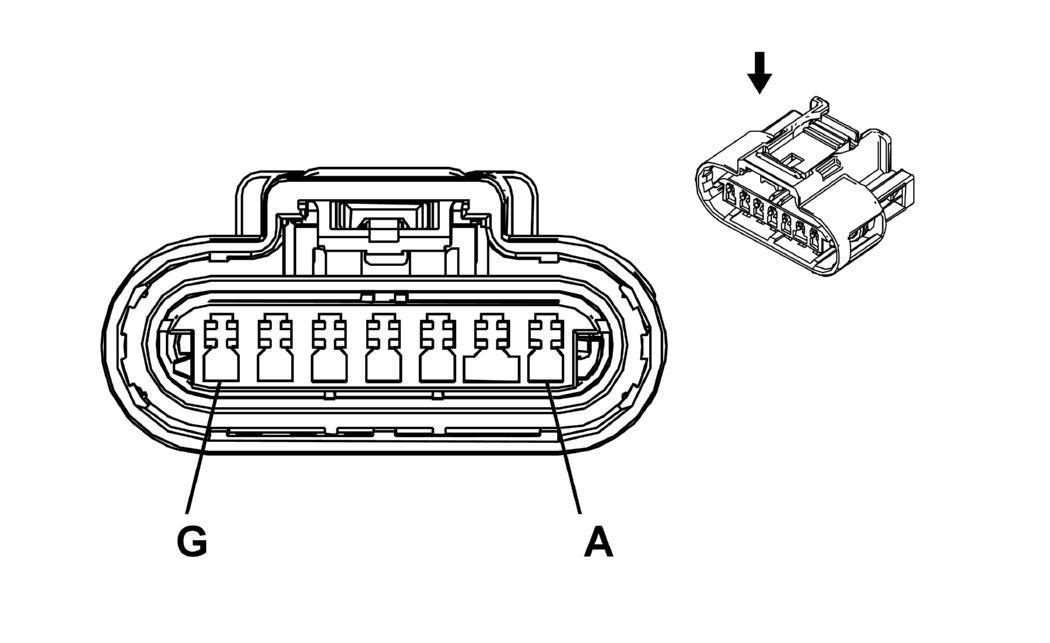

K35 Ignition Coil Module (LUV)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: F444110
- Service Connector: 19300475
- Description: 7-Way F 2.8 Series, Sealed
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1 |
RD/BU |
5291 |
Powertrain Main Relay Fused Supply (2) |
I |
- |
| B |
1 |
BK |
250 |
Ground |
I |
- |
| C |
0.5 |
BK/BU |
2129 |
Ignition Control Low Reference Bank 1 |
I |
- |
| D |
0.5 |
BU/VT |
2121 |
Ignition Control (1) |
I |
- |
| E |
0.5 |
BU/WH |
2122 |
Ignition Control (2) |
I |
- |
| F |
0.5 |
GN/BU |
2123 |
Ignition Control (3) |
I |
- |
| G |
0.5 |
YE/BU |
2124 |
Ignition Control (4) |
I |
- |
