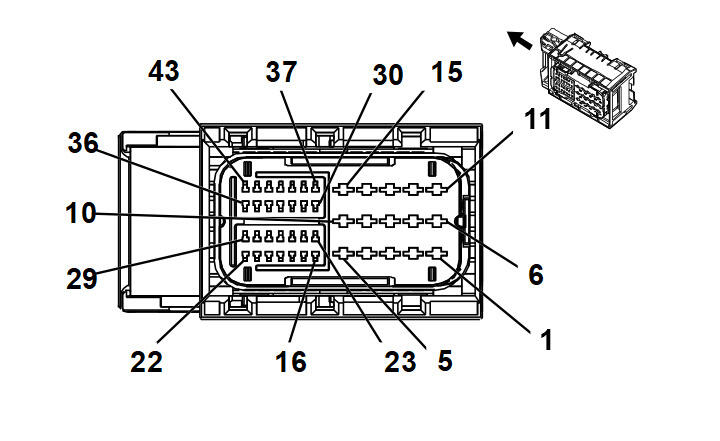

K34 Glow Plug Control Module X2

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13579744	J-35616-4A (PU)	J-38125-556	Not Available	Not Available	Not Available	Not Available
II	13576372	J-35616-4A (PU)	J-38125-556	Not Available	Not Available	Not Available	Not Available
III	19331734	J-35616-16 (LT GN)	J-38125-21	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1.5	GY	3675	DEF Pump Heater Control	II	-
2	2.5	GY/YE	1584	Glow Plug Control (4)	II	-
3	2.5	GY/GN	1583	Glow Plug Control (3)	II	-
4	2.5	GY/BN	1582	Glow Plug Control (2)	II	-
5	2.5	GY/BU	1581	Glow Plug Control (1)	II	-
6	1.5	BN/BU	3922	DEF Heater Supply 2	II	-
7	0.75	BK/BU	3673	Nox Sensor (1) Ground	I	-
8	0.75	BK	150	Ground	I	-
9	0.75	BK/GY	3671	Nox Sensor (2) Ground	I	-
10	0.75	BK	150	Ground	I	-
11	1.5	BU	3921	DEF Heater Supply 1	II	-
12 - 17	-	-	-	Not Occupied	-	-
18	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	III	-
19	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	III	-
20 - 24	-	-	-	Not Occupied	-	-
25	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	III	-
26	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	III	-
27 - 32	-	-	-	Not Occupied	-	-
33	0.75	VT/WH	239	Run/Crank Ignition 1 Voltage	III	-
34 - 36	-	-	-	Not Occupied	-	-
37	0.75	VT/BU	3674	Nox Sensor (1) Control	III	-
38	0.75	GY	3672	Nox Sensor (2) Control	III	-
39	-	-	-	Not Occupied	-	-
40	0.5	VT/YE	5985	Accessory Wakeup Serial Data	III	-
41 - 43	-	-	-	Not Occupied	-	-
