K8 Blower Motor Control Module X2
|
|

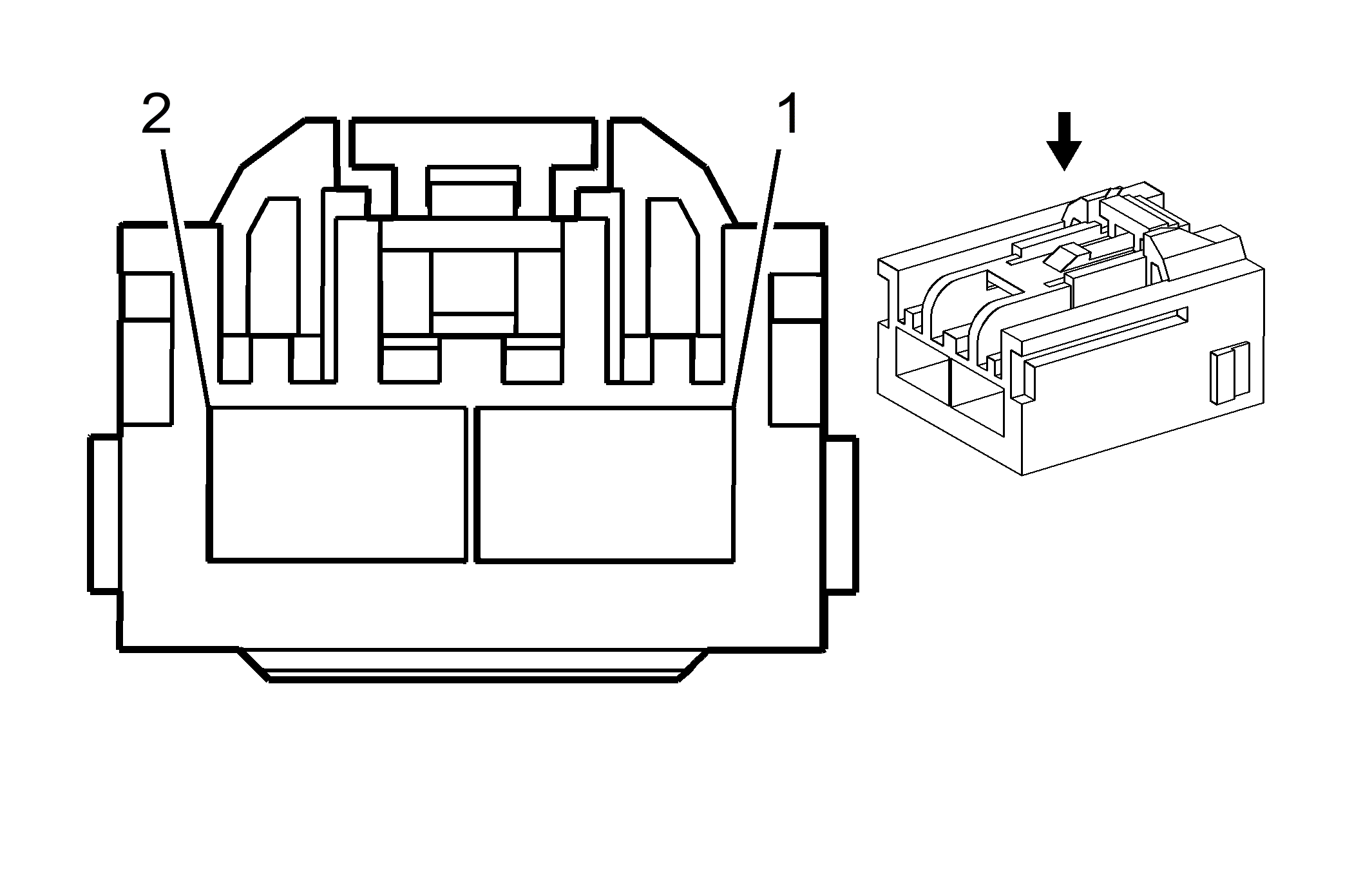

Connector Part Information
- Harness Type: HVAC
- OEM Connector: 10846816
- Service Connector: 88988507
- Description: 2-Way F (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575835 |
J-35616-42 (RD) |
J-38125-11A |
7116-4122-02 |
7116412202 |
A |
B |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD |
65 |
Blower Motor Supply Voltage |
I |
- |
| 2 |
4 |
BK |
374 |
Blower Motor Fan Control |
I |
- |
