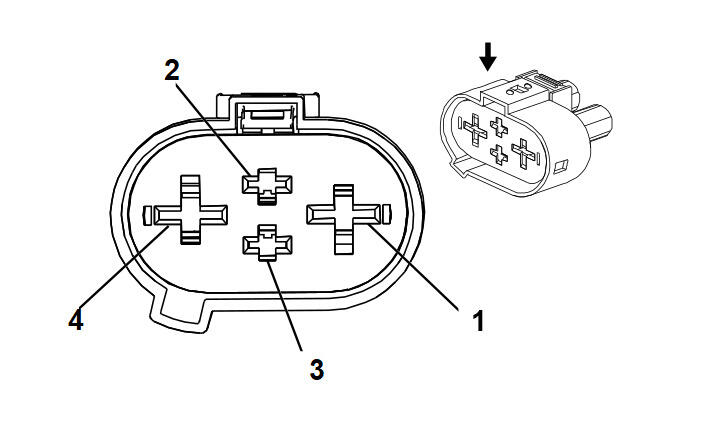

G10 Cooling Fan Motor (LUZ)
|
|
Connector Part Information
- Harness Type: Cooling Fan
- OEM Connector: 10864104
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 4.8, 9.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-22 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-40 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
6 |
YE |
5358 |
Cooling Fan Motor Control (3) |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
2.5 |
WH/BK |
2366 |
Cooling Fan Control Relay Speed Signal |
II |
- |
| 4 |
6 |
BK |
1250 |
Ground |
I |
- |
