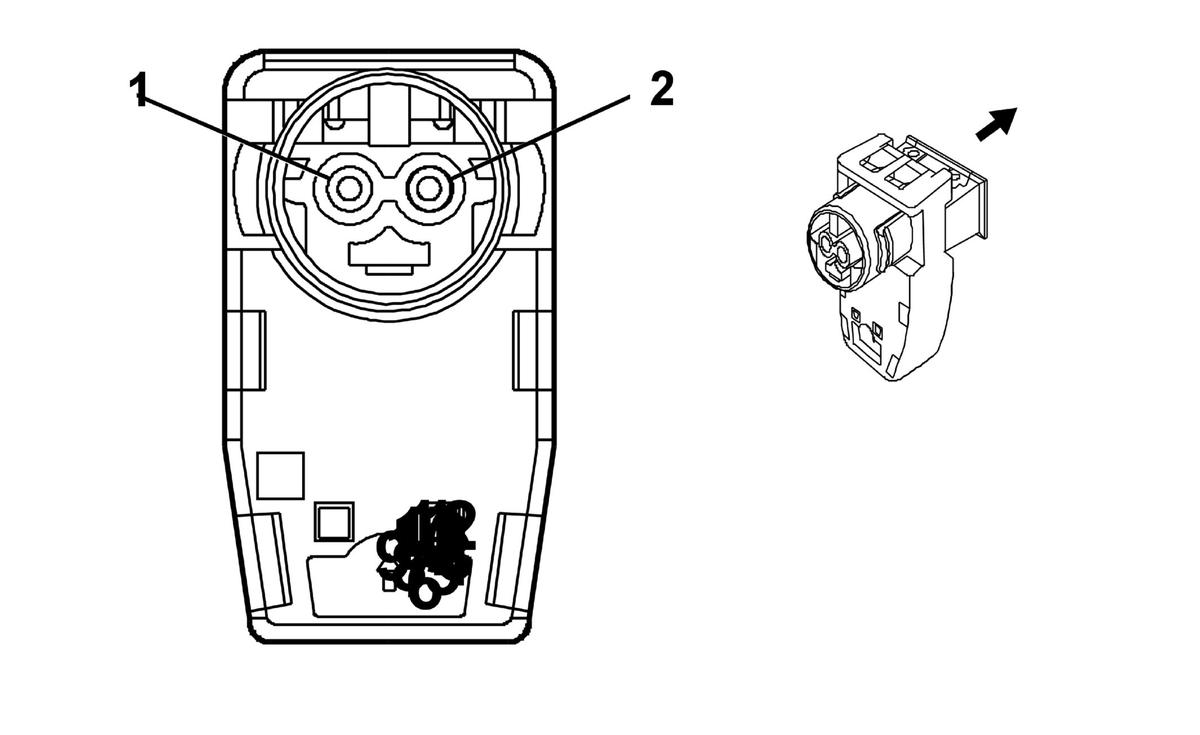

F114D Knee Air Bag - Driver
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13863037
- Service Connector: 13587886
- Description: 2-Way F 1.2 MCP Series, Sealed (YE with BK Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service By Connector Assembly - 19178096 |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/BU |
3078 |
Driver Knee Module High Control |
I |
- |
| 2 |
0.5 |
GY/OG |
3079 |
Driver Knee Module Low Control |
I |
- |
