F107 Steering Wheel Air Bag X1
|
|

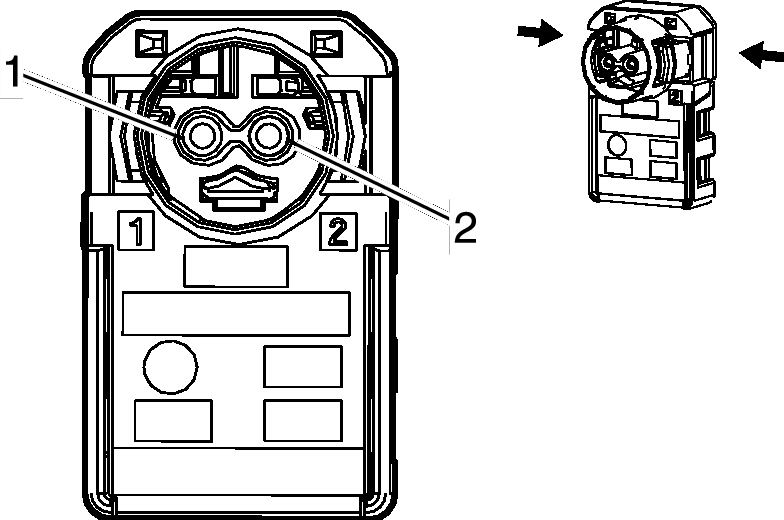

Connector Part Information
- Harness Type: Steering Column
- OEM Connector: 13262035
- Service Connector: 19118659
- Description: 2-Way F (L-GN with YE Case)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Connector Assembly - 19118659 |
J-35616-64B (L-BU) |
Not Available |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
TN |
3021 |
Steering Wheel Module Stage 1 High Control |
I |
- |
| 2 |
0.5 |
BN |
3020 |
Steering Wheel Module Stage 1 Low Control |
I |
- |
