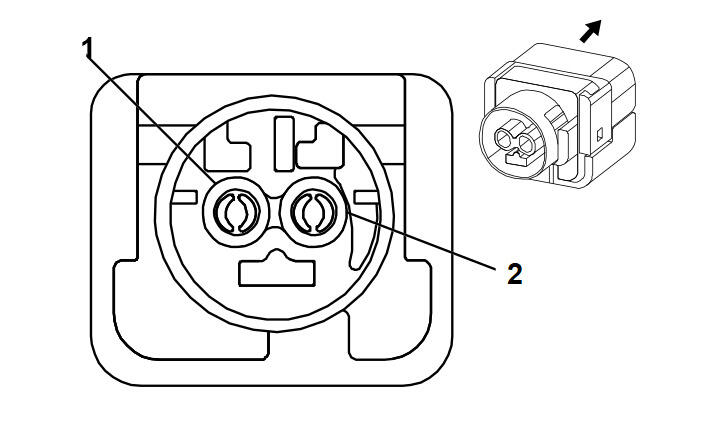

F106D Seat Air Bag - Driver
|
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13773783
- Service Connector: 19258830
- Description: 2-Way F (YE/OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - 19258830 |
J-35616-64B (L-BU) |
Not Available |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/D-BU |
2137 |
Left Front Side Impact Module High Control |
I |
- |
| 2 |
0.5 |
YE/OG |
2138 |
Left Front Side Impact Module Low Control |
I |
- |
