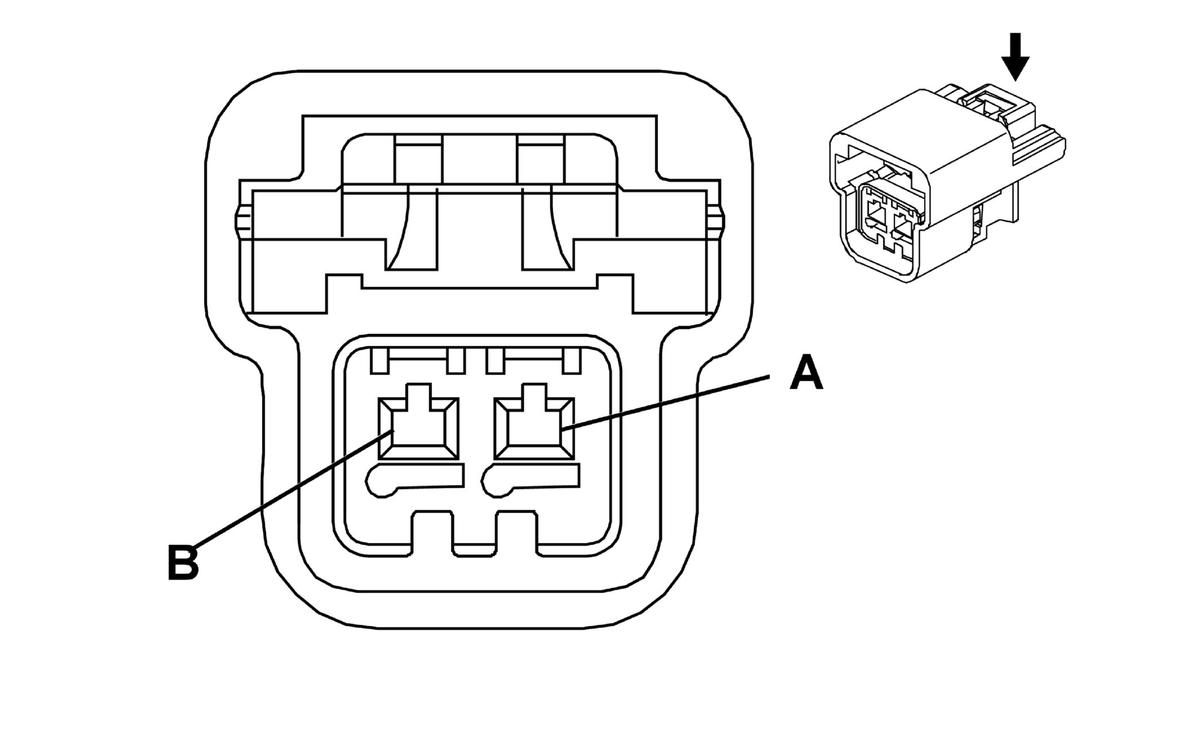

E6 Center High Mounted Stop Lamp
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13668003
- Service Connector: 13587145
- Description: 2-Way F 150 GT FBT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
VT/WH |
5065 |
Stop Lamp Relay Coil Control |
I |
- |
| B |
0.5 |
BK |
650 |
Ground |
I |
- |
