E40 Electrical Auxiliary Heater X2 (LUZ)
|
|

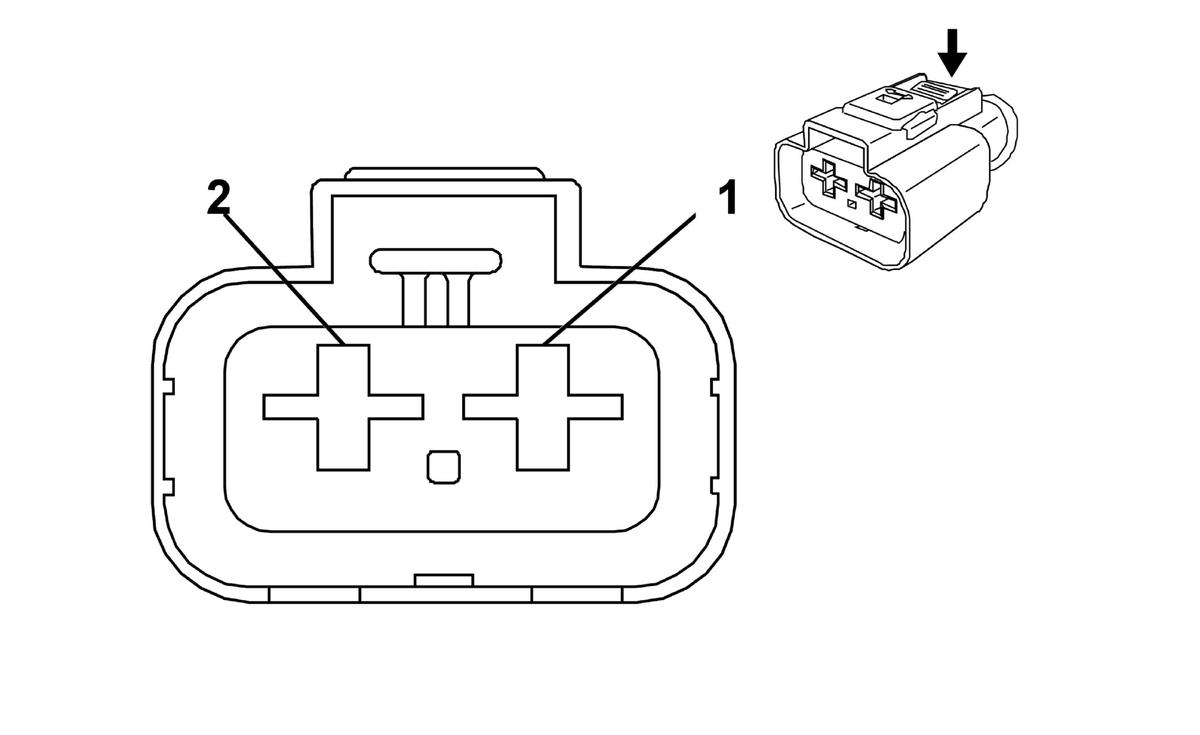

Connector Part Information
- Harness Type: Body
- OEM Connector: 10780237
- Service Connector: 13576531
- Description: 2-Way F 9.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-22 (RD) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
10 |
RD/D-BU |
4540 |
Battery Positive Voltage |
I |
- |
| 2 |
10 |
BK |
1350 |
Ground |
I |
- |
