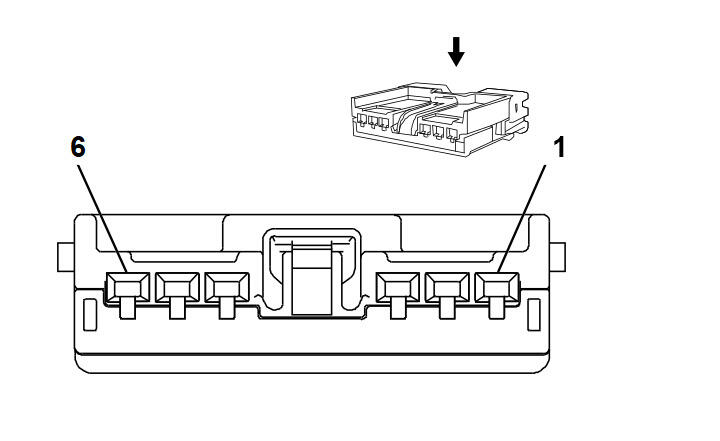

E37F Dome/Reading Lamps - Front
|
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 13641551
- Service Connector: 13576538
- Description: 6-Way F 1.5 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/BN |
6815 |
Inadvertent Power Control |
I |
- |
| 2 |
0.5 |
GY |
157 |
Interior Lamp Control |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
GY/L-GN |
328 |
Interior Lamp Defeat Switch Signal |
I |
- |
| 5 |
0.35 |
L-GN/BN |
6998 |
Inadvertent Load 1 Control |
I |
- |
| 6 |
0.5 |
BK |
1550 |
Ground |
I |
- |
