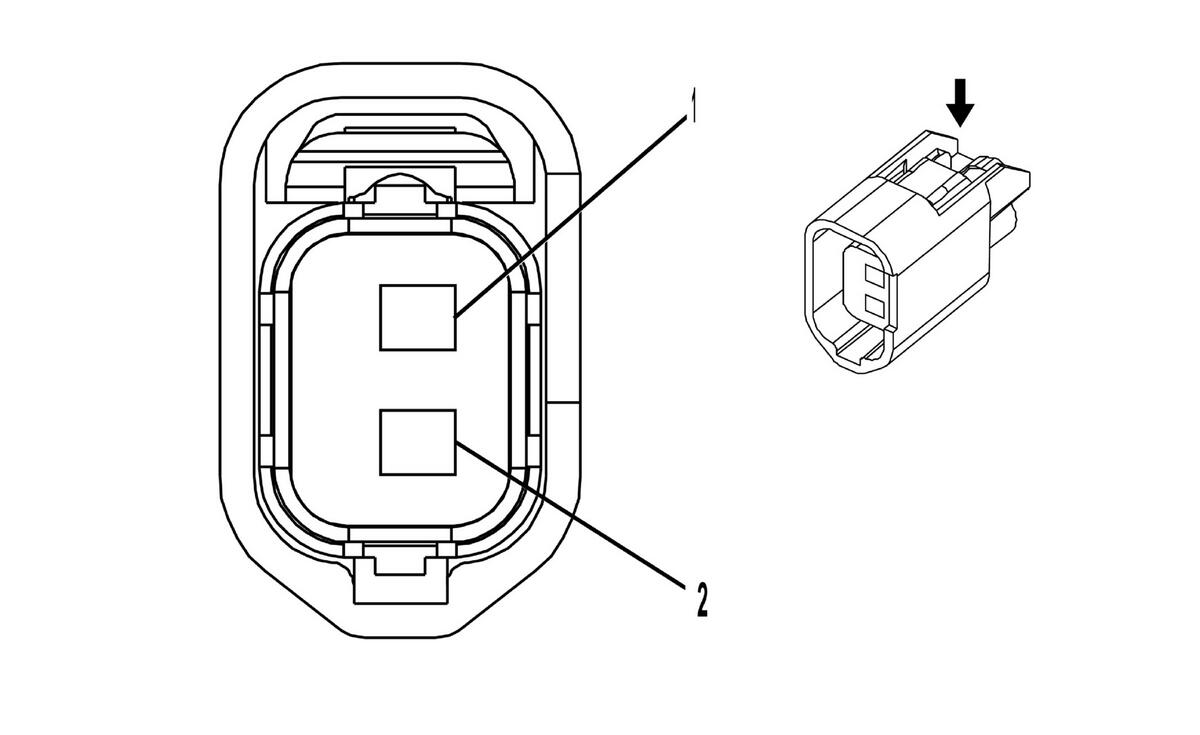

E2RF Side Marker Lamp - Right Front
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13627828
- Service Connector: 13581089
- Description: 2-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/BN |
309 |
Right Park Lamp Control |
I |
- |
| 2 |
0.5 |
BK |
1050 |
Ground |
I |
- |
