E14B Seat Heating Element - Driver Cushion (KA1)
|
|

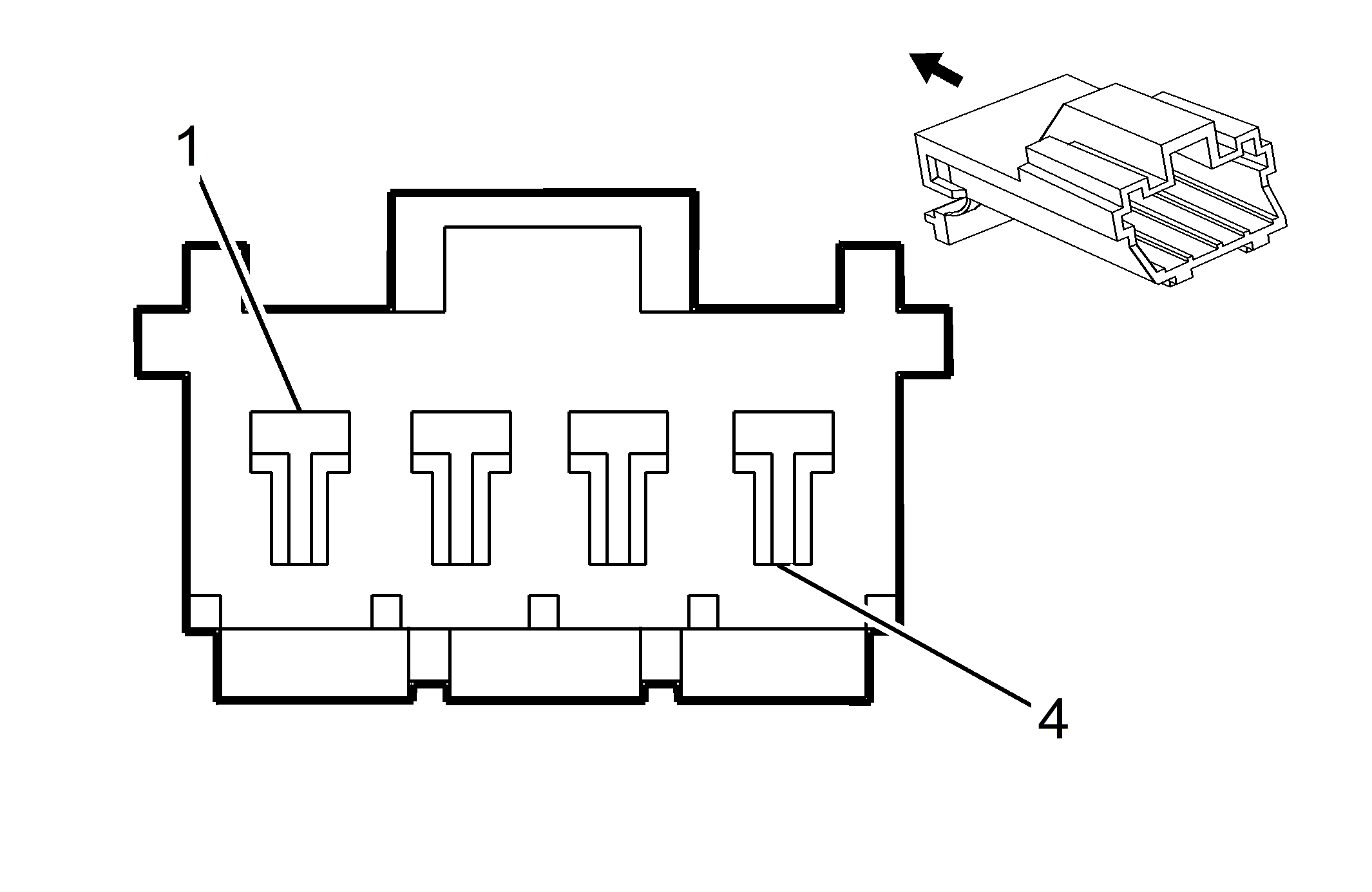

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: MG620397
- Service Connector: Service by Harness- See Part Catalog
- Description: 4-Way M 090 II Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness- See Part Catalog |
Not Available |
Not Available |
Service by Harness- See Part Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
YE |
2077 |
Driver Heated Seat Element Supply Voltage |
I |
- |
| 2 |
0.5 |
GN |
2020 |
Driver Heated Seat Element Return |
I |
- |
| 3 |
0.5 |
BK |
2080 |
Driver Heated Seat NTC Low Reference |
I |
- |
| 4 |
0.5 |
RD |
2079 |
Driver Heated Seat NTC Signal |
I |
- |
