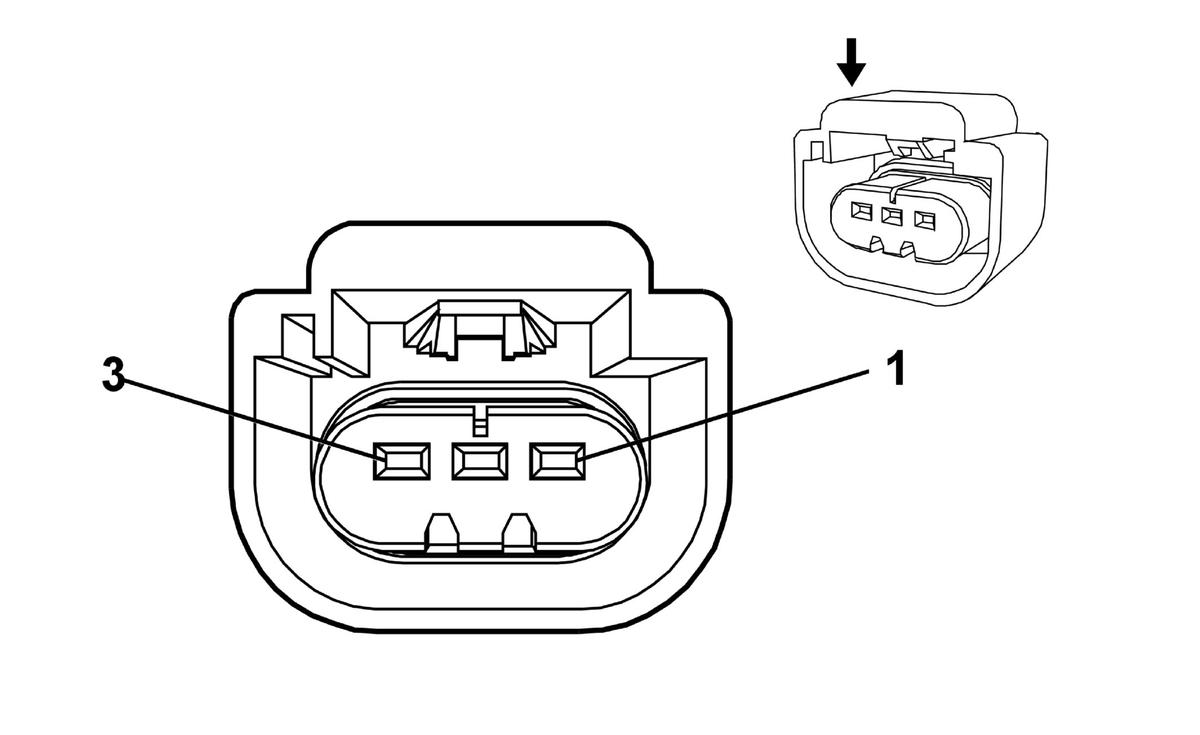

E13L Headlamp - Left
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13511136
- Service Connector: 13584279
- Description: 3-Way F 150 GT Series, Sealed (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
YE |
712 |
Left Headlamp Low Beam Control |
I |
- |
| 2 |
1.5 |
BK |
1150 |
Ground |
I |
- |
| 3 |
1.5 |
WH |
711 |
Left Headlamp High Beam Control |
I |
- |
