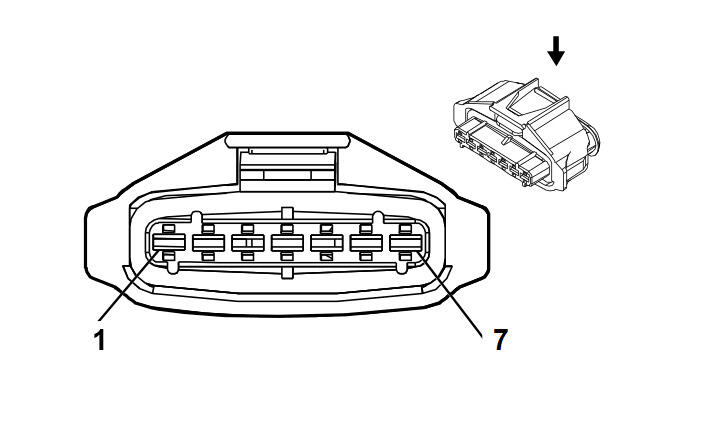

E11A Fuel Heater/Water in Fuel Sensor
|
|
Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: 10774827
- Service Connector: Service by Harness - See Part Catalog
- Description: 7-Way F 2.8 Junior Power Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-35 (VT) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/BN |
6062 |
Fuel Temperature Sensor Low Reference |
I |
- |
| 2 |
0.5 |
YE |
1578 |
Fuel Temperature Signal |
I |
- |
| 3 |
0.5 |
WH/BN |
508 |
Water In Fuel Indicator Control |
I |
- |
| 4 |
0.5 |
BK |
1350 |
Ground |
I |
- |
| 5 |
0.5 |
VT |
5290 |
Powertrain Main Relay Fused Supply (1) |
I |
- |
| 6 |
2.5 |
RD |
1842 |
Battery Positive Voltage |
I |
- |
| 7 |
2.5 |
BK |
1350 |
Ground |
I |
- |
