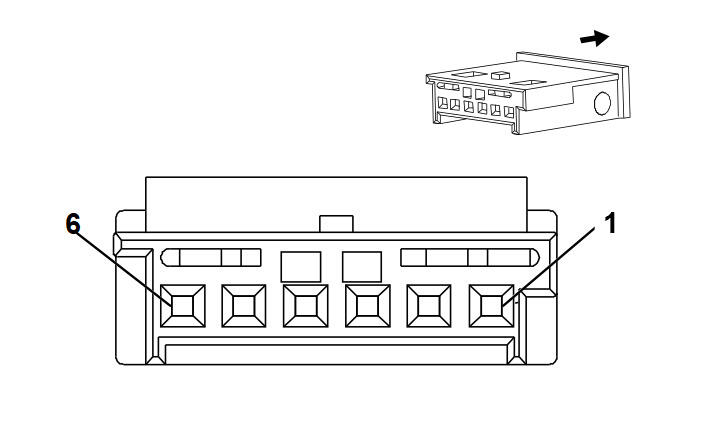

B99 Steering Wheel Angle Sensor (FX3)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 10820415
- Service Connector: 13505903
- Description: 6-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH |
6106 |
High Speed GMLAN Serial Data (-) (2) |
I |
- |
| 2 |
0.5 |
WH |
6106 |
High Speed GMLAN Serial Data (-) (2) |
I |
- |
| 3 |
0.5 |
D-BU/YE |
6105 |
High Speed GMLAN Serial Data (+) (2) |
I |
- |
| 4 |
0.5 |
D-BU/YE |
6105 |
High Speed GMLAN Serial Data (+) (2) |
I |
- |
| 5 |
0.5 |
L-GN/BN |
2087 |
Combined Vehicle Inertial Sensor Supply Voltage |
I |
- |
| 6 |
0.5 |
BK |
1650 |
Ground |
I |
- |
