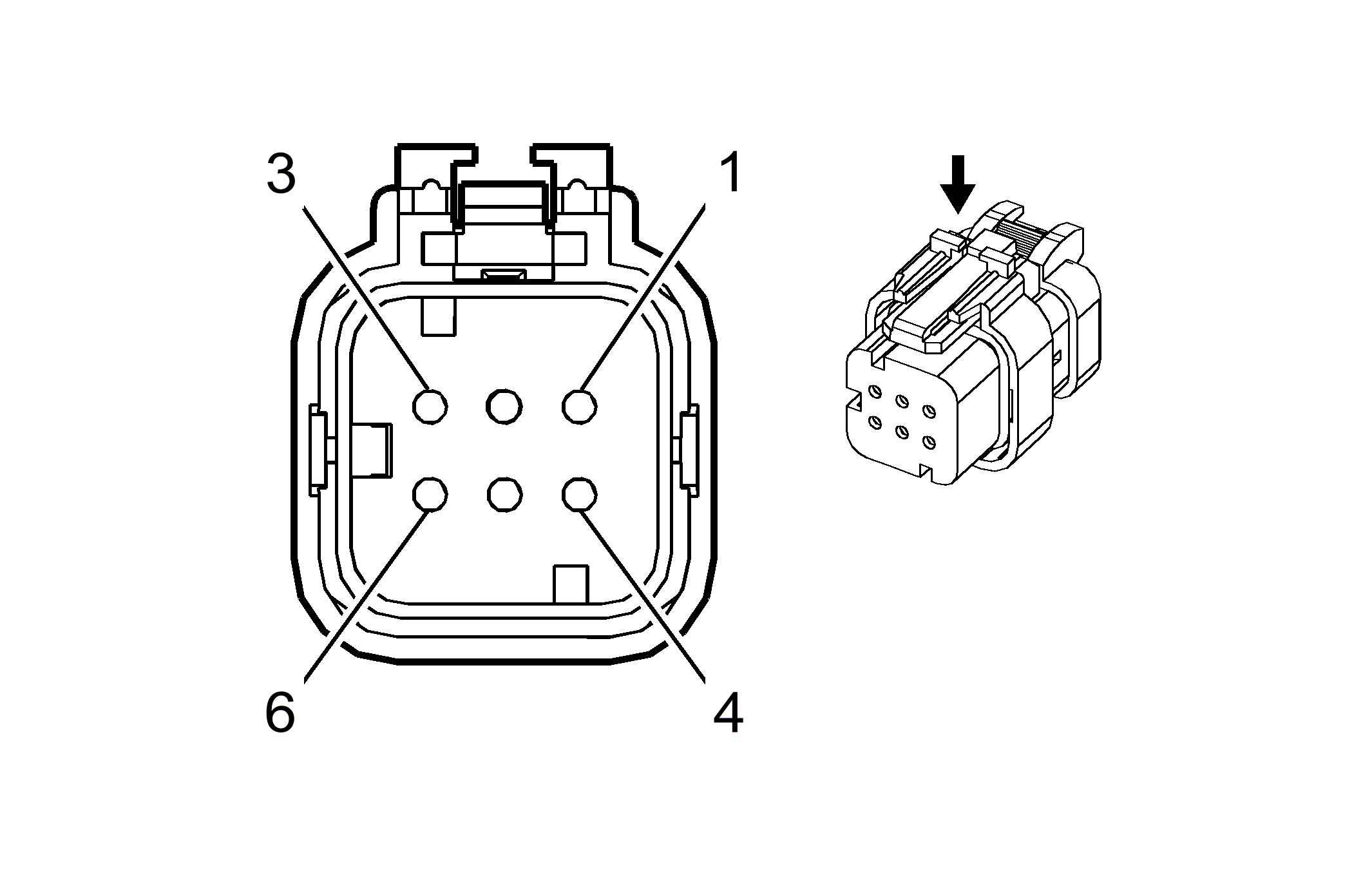

B195B Nitrogen Oxides Sensor 2 (LUZ)
|
|
Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: 13734132
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
GY |
3672 |
Nox Sensor (2) Control |
I |
- |
| 2 |
0.5 |
WH |
7494 |
High Speed GMLAN Serial Data (-) (3) |
I |
- |
| 3 |
0.5 |
BU/BK |
7493 |
High Speed GMLAN Serial Data (+) (3) |
I |
- |
| 4 |
1 |
TN/BK |
3671 |
Nox Sensor (2) Ground |
I |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
