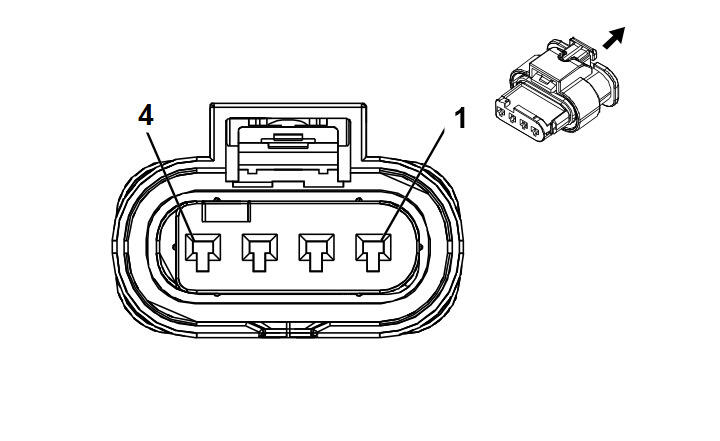

B136 Exhaust Particulate Matter Sensor
|
|
Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: 13871586
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 MCON Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
WH |
2550 |
Ground |
I |
- |
| 2 |
0.5 |
WH |
7494 |
High Speed GMLAN Serial Data (-) (3) |
I |
- |
| 3 |
0.5 |
BK |
7493 |
High Speed GMLAN Serial Data (+) (3) |
I |
- |
| 4 |
1 |
BK |
5705 |
Powertrain Main Relay Fused Control (6) |
I |
- |
