B68 Knock Sensor (LUW/LWE)

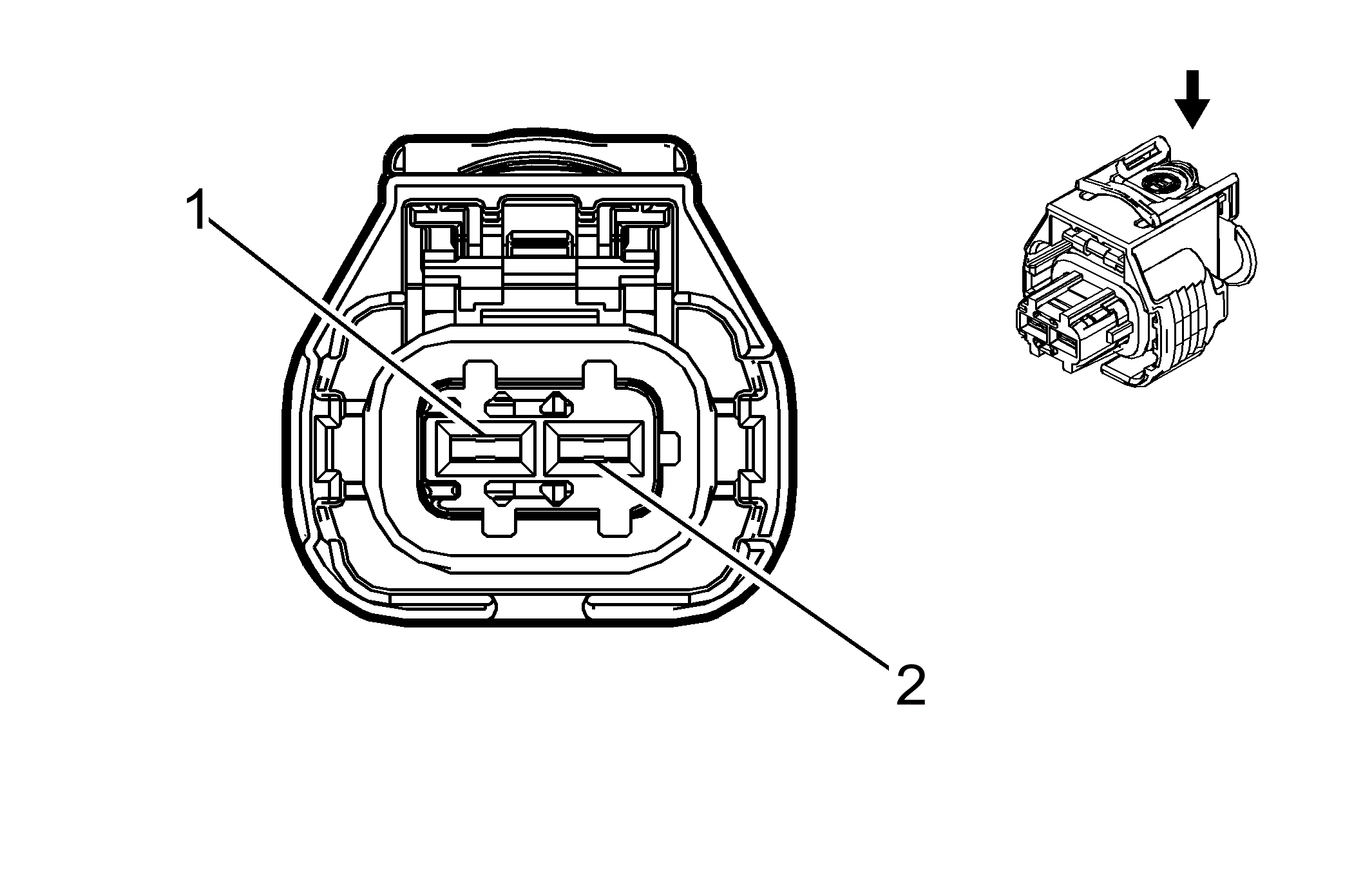

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-35 (VT) | Not Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 0.5 |
VT/GY VT/GY |
496 496 |
Knock Sensor Signal (1) | I | LUW LWE |
| 2 | 0.5 0.5 |
BK/YE BK/YE |
1716 1716 |
Knock Sensor Low Reference (1) | I | LUW LWE |
