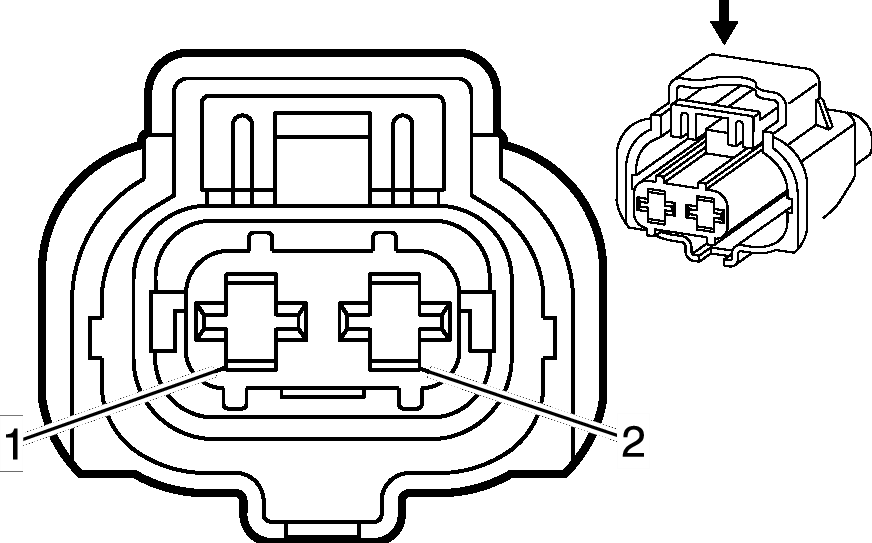

B68 Knock Sensor (LUV)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 55565696
- Service Connector: 19119660
- Description: 2-Way F 2.8 DCS Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/GY |
496 |
Knock Sensor Signal (1) |
I |
- |
| 2 |
0.5 |
BK/YE |
1716 |
Knock Sensor Low Reference (1) |
I |
- |
