B52A Heated Oxygen Sensor 1 (LUW/LWE)

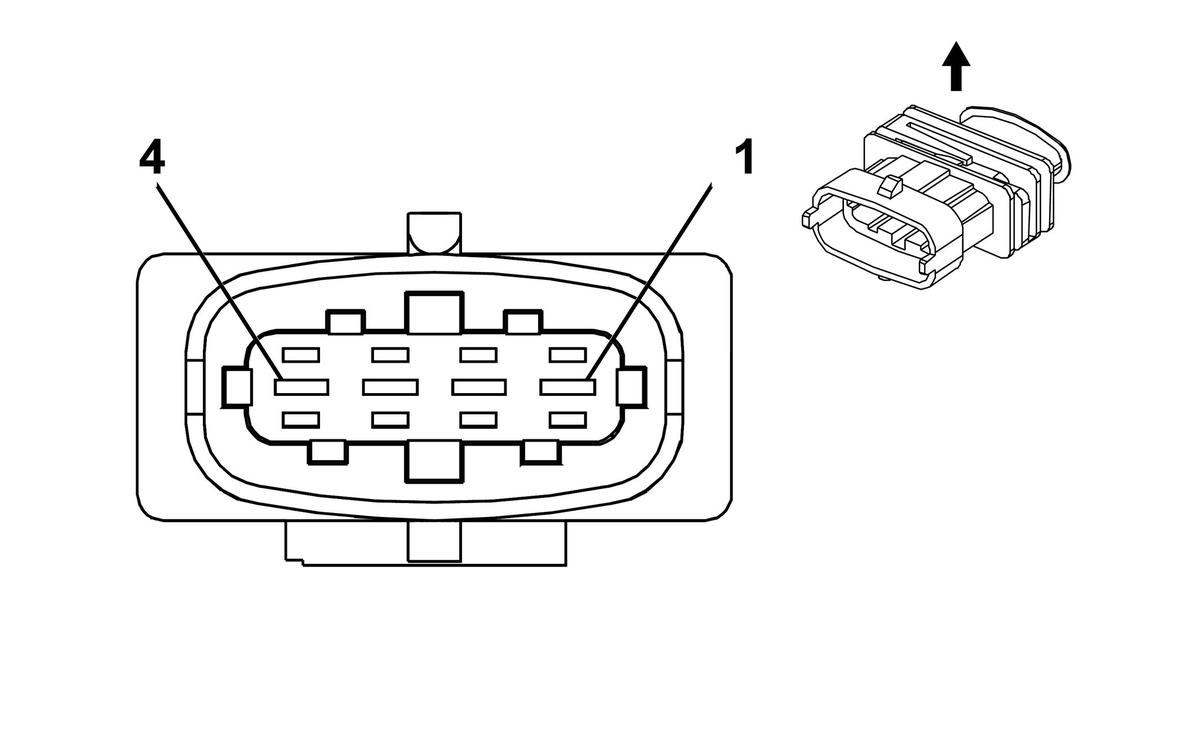

Connector Part Information Harness Type: Engine OEM Connector: 13122327 Service Connector: 88952839 Description: 4-Way M 2.8 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Required	J-35616-5 (PU)	Not Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	VT/BU	5293	Powertrain Main Relay Fused Supply (4)	I	LUW/LWE
2	0.75 0.5	GY/WH GY/WH	3113 3113	Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1)	I	LUW LWE
3	0.5 0.5	WH/BK WH/BK	3111 3111	Heated Oxygen Sensor Low Signal Bank 1 Sensor (1)	I	LUW LWE
4	0.5 0.5	VT/GY VT/GY	3110 3110	Heated Oxygen Sensor High Signal Bank 1 Sensor (1)	I	LUW LWE
