B37B Engine Oil Pressure Sensor (LUZ)
|
|

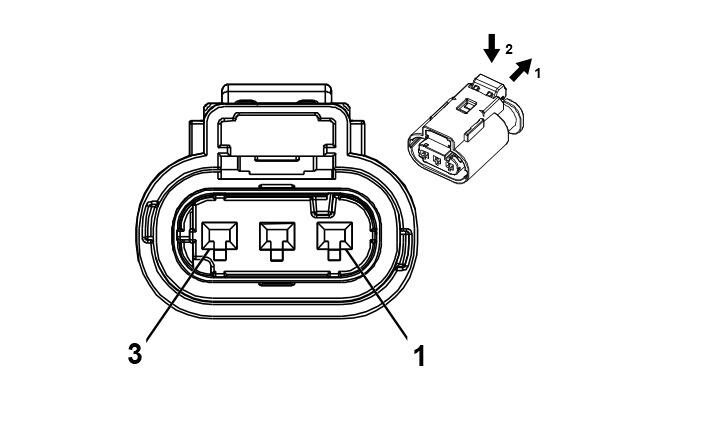

Connector Part Information
- Harness Type: Engine
- OEM Connector: 10010341
- Service Connector: 19299690
- Description: 3-Way F 1.2 MLK Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/RD |
2705 |
Oil Pressure Sensor 5 Volt Reference |
I |
- |
| 2 |
0.5 |
YE/BN |
331 |
Oil Pressure Sensor Signal |
I |
- |
| 3 |
0.5 |
BK/VT |
2755 |
Oil Pressure Sensor Low Reference |
I |
- |
