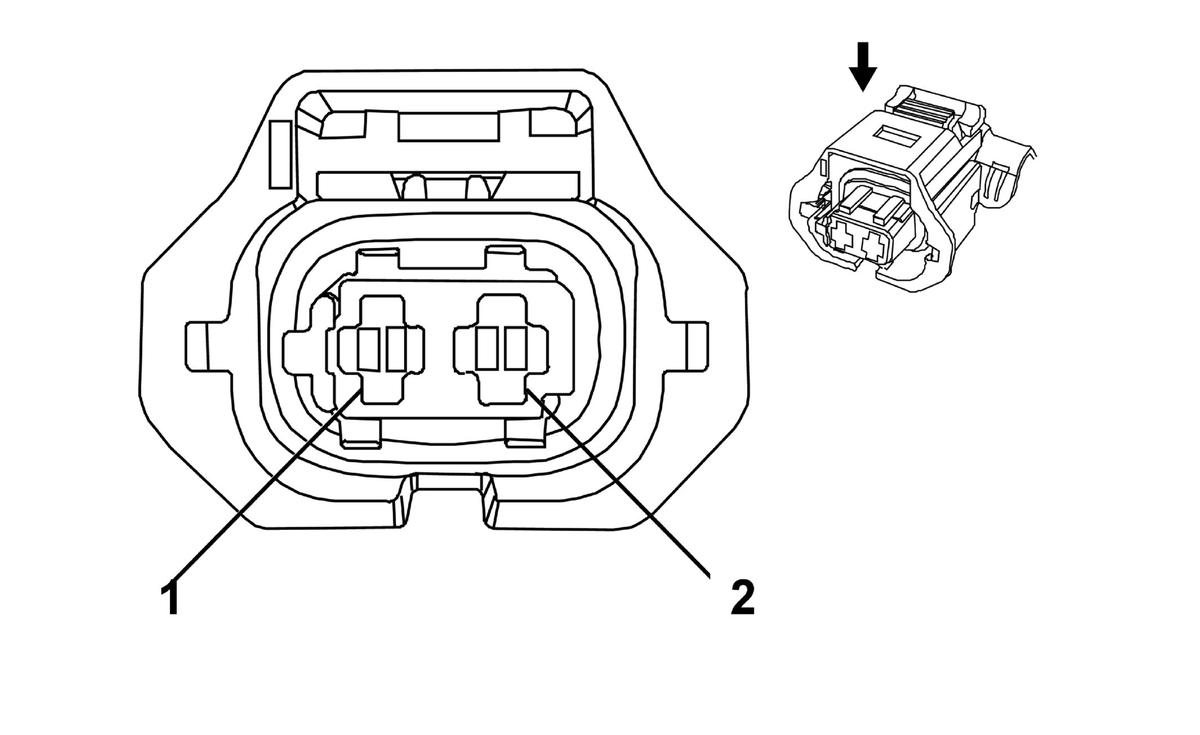

B35B Engine Oil Level Sensor (LUZ)
|
|
Connector Part Information
- Harness Type: Rear Engine Jumper
- OEM Connector: 13595623
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 2-Way F ATS 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
150 |
Ground |
I |
- |
| 2 |
0.5 |
BN/GN |
1174 |
Oil Level Switch Signal |
I |
- |
