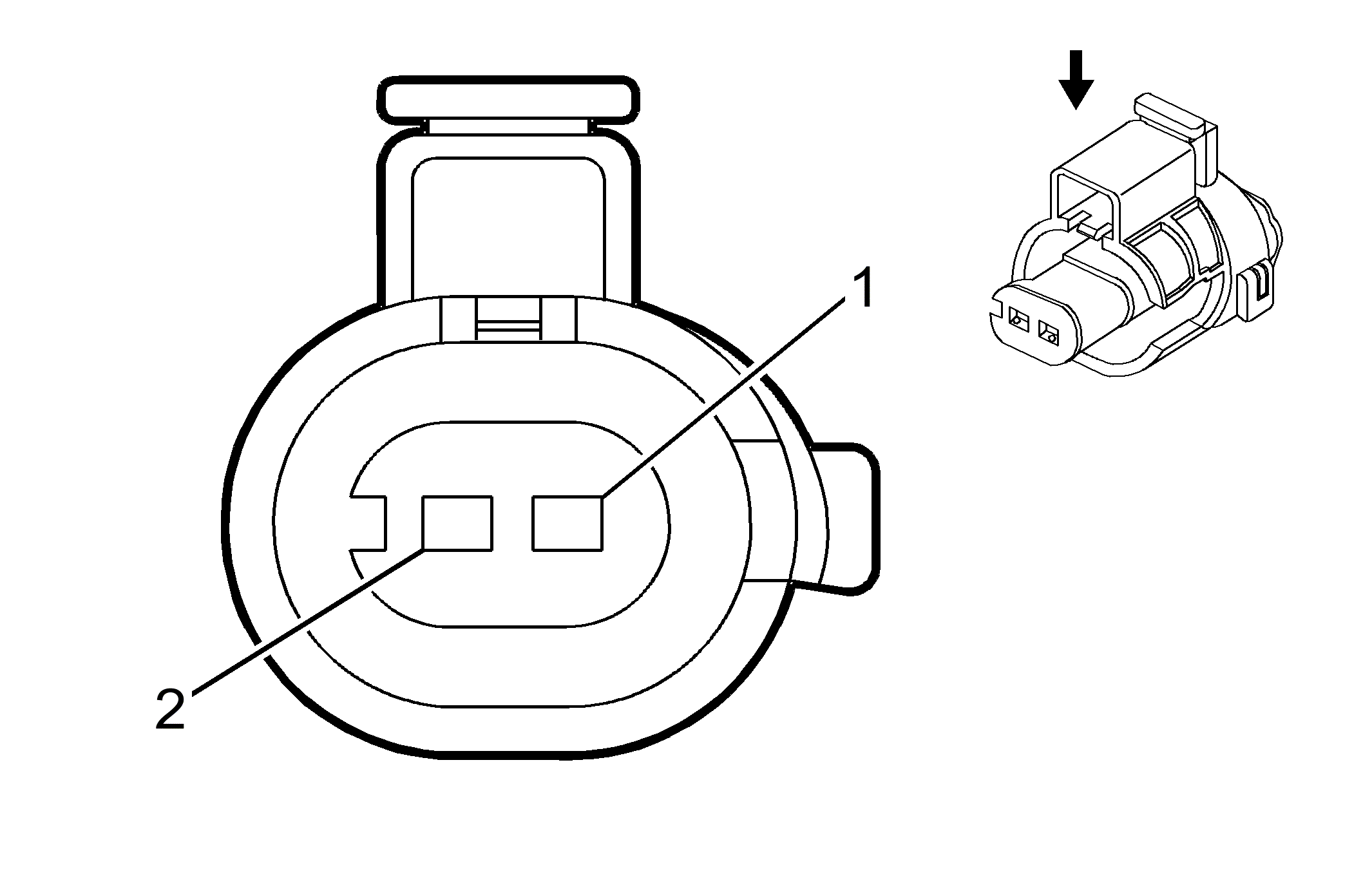

B26 Crankshaft Position Sensor (LUZ)
|
|
Connector Part Information
- Harness Type: Rear Engine Jumper
- OEM Connector: 55566735
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 2-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN |
573 |
Crankshaft Position Sensor Signal (1) |
I |
- |
| 2 |
0.5 |
BK/VT |
574 |
Crankshaft Position Sensor Low Reference (1) |
I |
- |
