B26 Crankshaft Position Sensor (LUW/LWE)
|
|

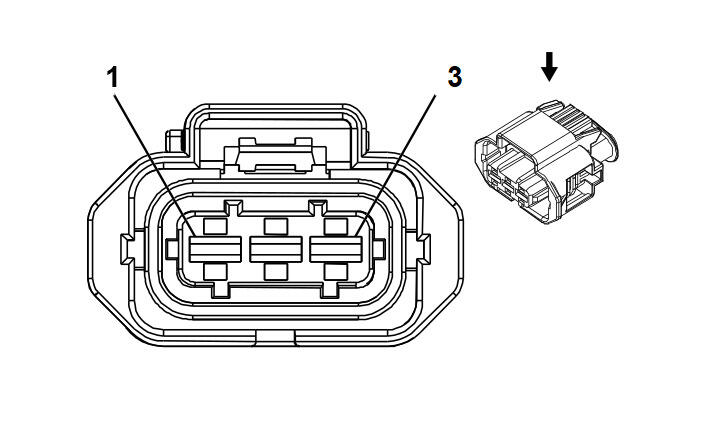

Connector Part Information
- Harness Type: Engine
- OEM Connector: 1928405523
- Service Connector: 13384360
- Description: 3-Way F 2.8 Series, Sealed (BK with BU Lock)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN |
6271 |
Crankshaft 60X Sensor Signal |
I |
LUW/LWE |
| 2 |
0.5 |
BK/VT |
6272 |
Crankshaft 60X Sensor Low Reference |
I |
LUW/LWE |
| 3 |
0.5 |
VT/BU |
6270 |
Crankshaft 60X Sensor 5 Volt Reference |
I |
LUW/LWE |
