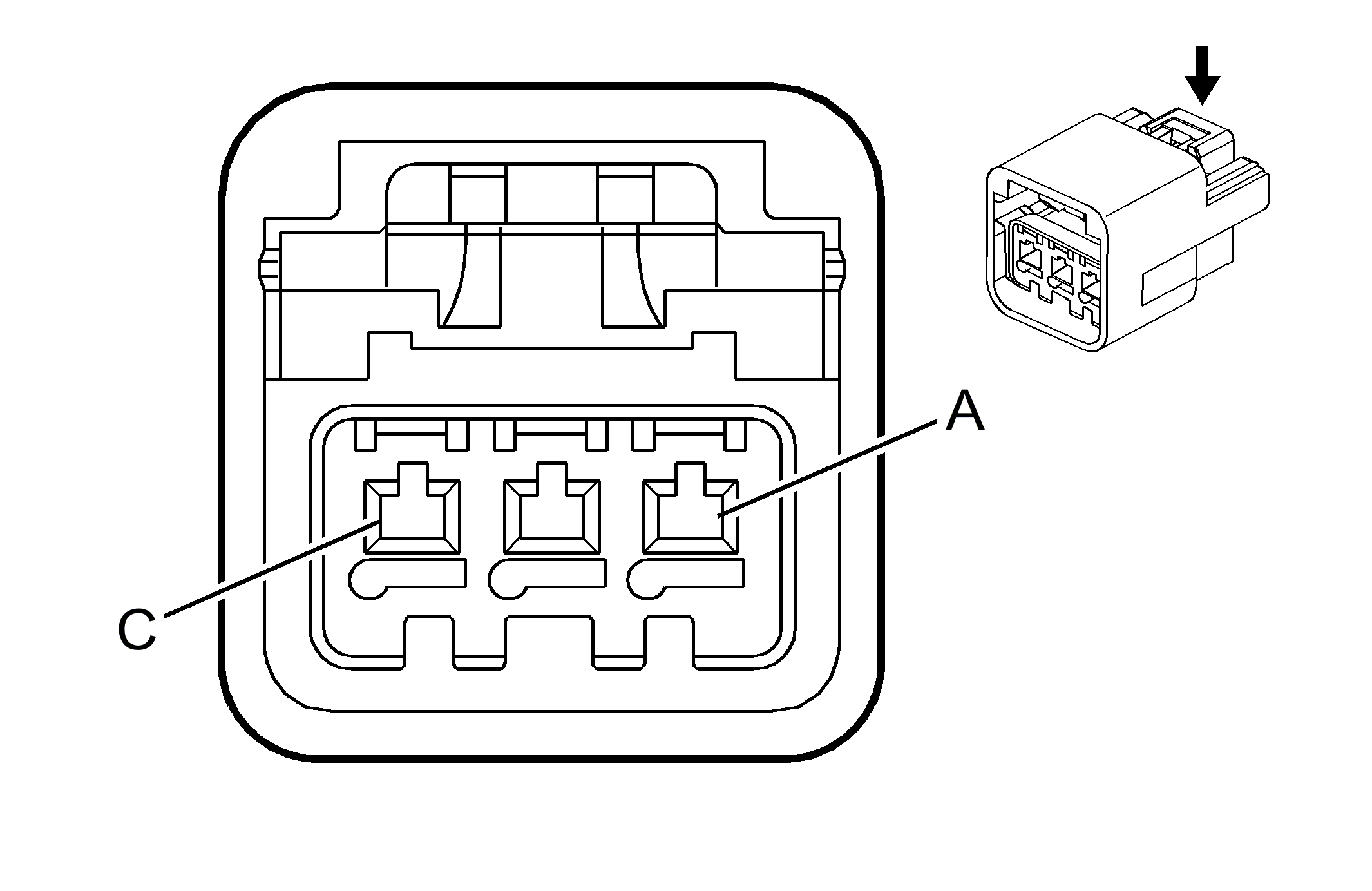

B25B Clutch Pedal Position Sensor (MF3 or MZ0)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13665550
- Service Connector: 13587128
- Description: 3-Way F 150 GT FBT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
BK/GY |
6110 |
Clutch Apply Sensor Low Reference |
I |
- |
| B |
0.5 |
YE |
6111 |
Clutch Apply Sensor Signal |
I |
- |
| C |
0.5 |
GY/RD |
6109 |
Clutch Apply Sensor 5 Volt Reference |
I |
- |
