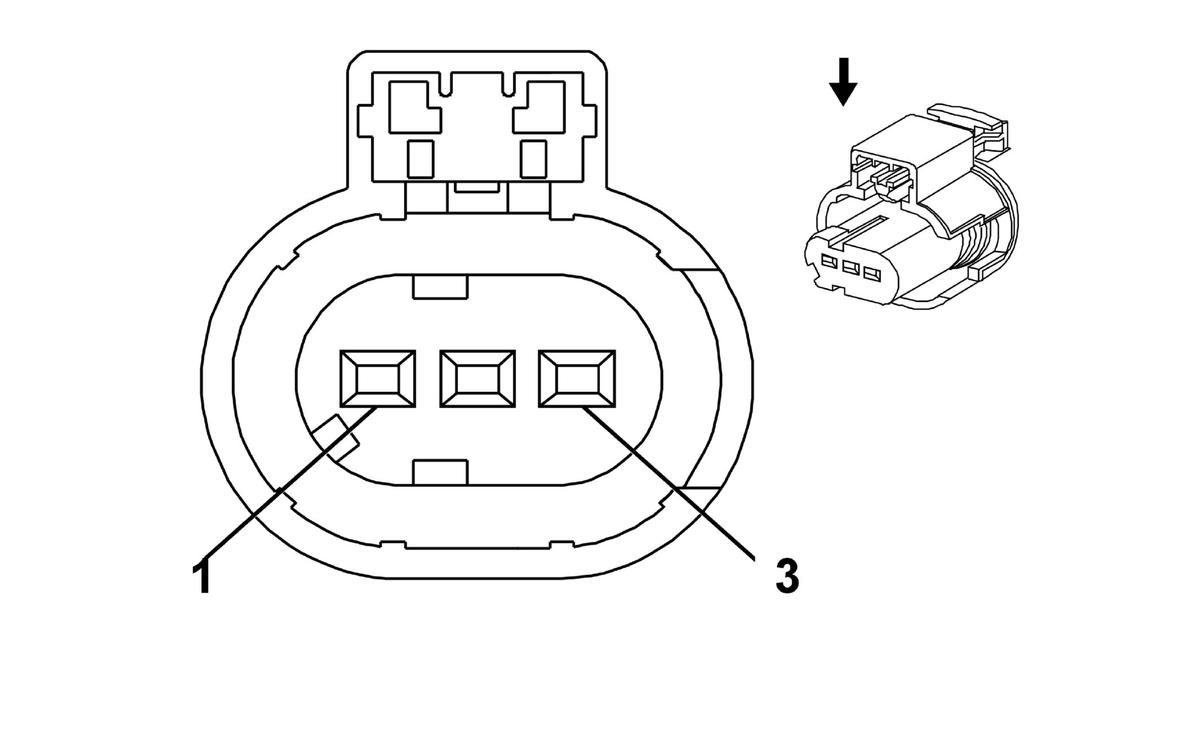

B23 Camshaft Position Sensor (LUZ)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 284425-3
- Service Connector: 13355816
- Description: 3-Way F 1.5 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/GY |
5296 |
Camshaft Position Exhaust Sensor Low Reference (1) |
I |
- |
| 2 |
0.5 |
VT/BK |
5273 |
Camshaft Position Exhaust Sensor (1) |
I |
- |
| 3 |
0.5 |
GY/YE |
5297 |
Camshaft Position Exhaust Sensor Control (1) |
I |
- |
