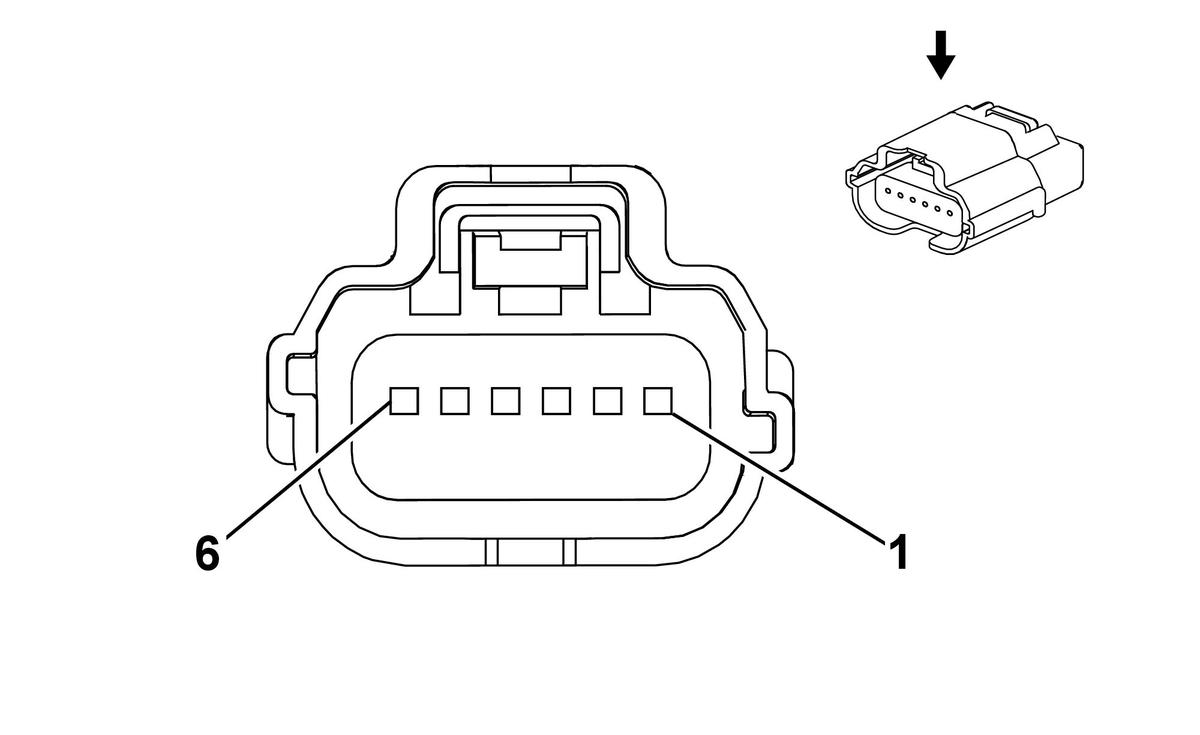

B22 Brake Pedal Position Sensor (MH8)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13893502
- Service Connector: 13577043
- Description: 6-Way F 64 Series, Sealed (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH |
5359 |
Brake Apply Sensor Control |
I |
- |
| 2 |
0.5 |
BK/BN |
5360 |
Brake Apply Sensor Low Reference |
I |
- |
| 3 |
0.5 |
D-BU/YE |
5361 |
Brake Apply Sensor Signal |
I |
- |
| 4 |
0.5 |
D-BU/YE |
5361 |
Brake Apply Sensor Signal |
I |
- |
| 5 |
0.5 |
WH |
5359 |
Brake Apply Sensor Control |
I |
- |
| 6 |
0.5 |
BK/BN |
5360 |
Brake Apply Sensor Low Reference |
I |
- |
