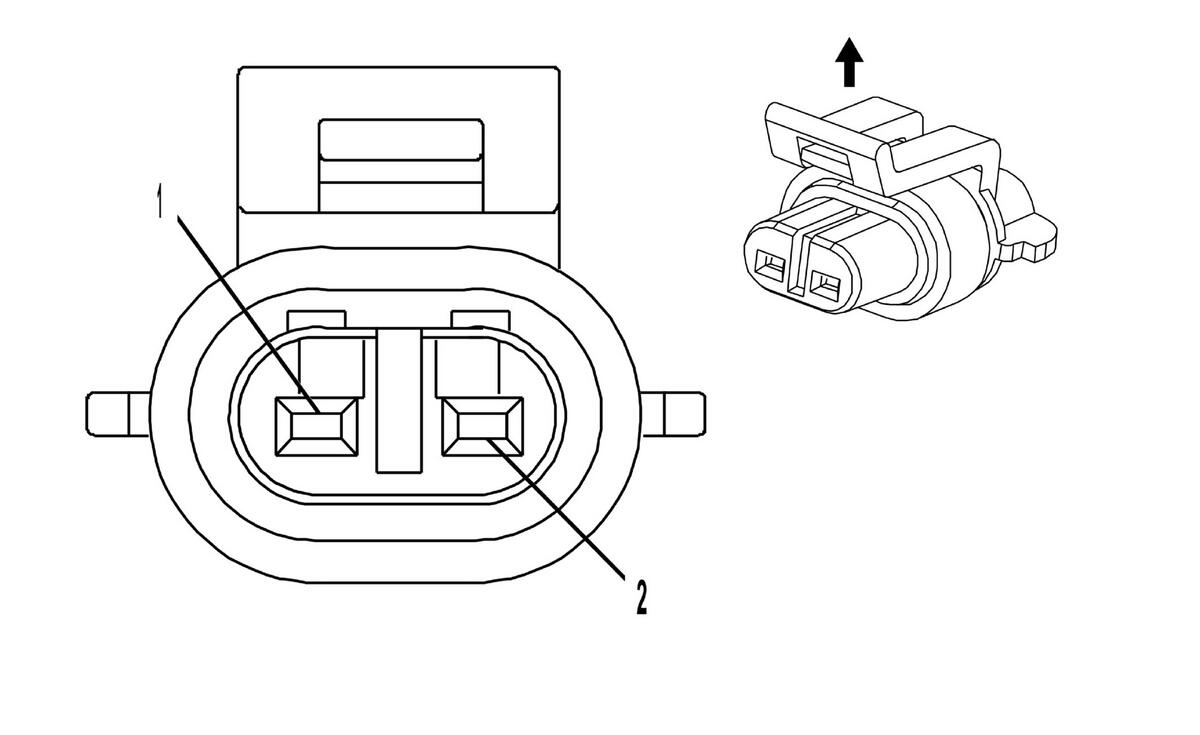

B16 Backup Lamp Switch (MZ0)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 90565978
- Service Connector: 88988136
- Description: 2-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/WH |
5007 |
Reverse Switch Signal |
I |
MZ0 |
| 2 |
0.5 |
BK |
150 |
Ground |
I |
MZ0 |
