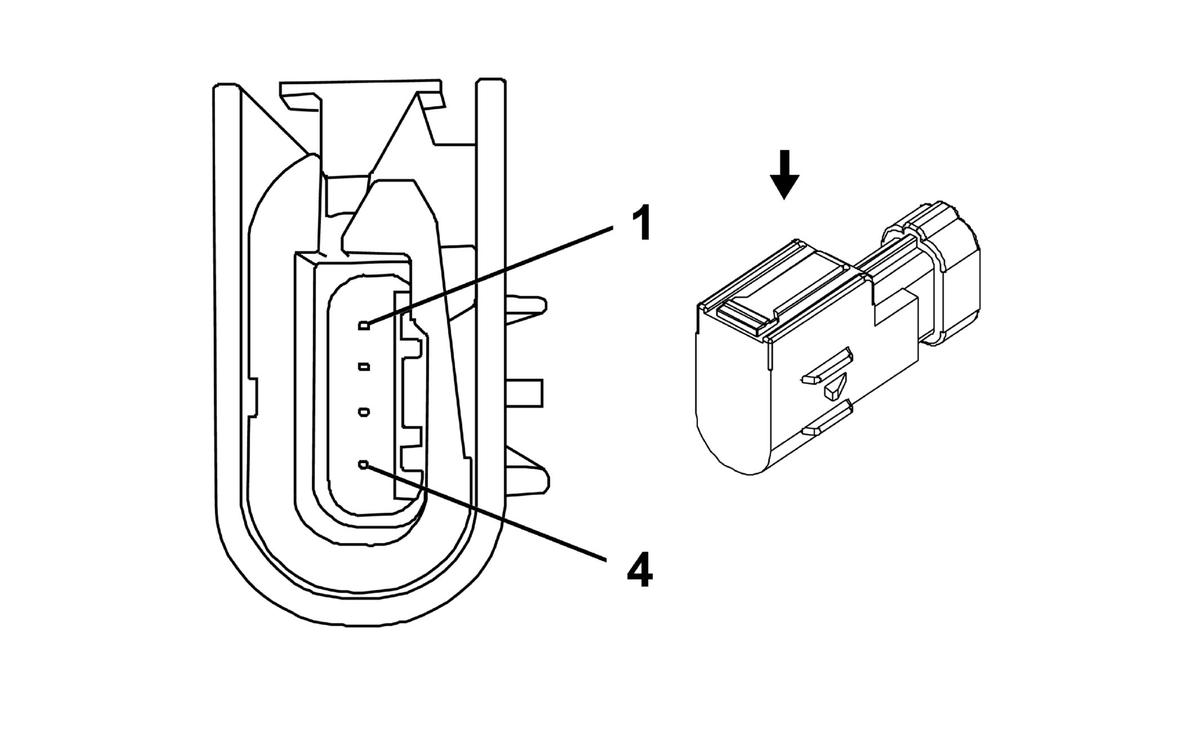

A24LR Door Handle Assembly - Left Rear Exterior
|
|
Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: 13617298
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 0.64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
999 |
Cavity Seal |
I |
- |
| 2 |
0.35 |
BK |
999 |
Cavity Seal |
I |
- |
| 3 |
0.35 |
BN/YE |
6157 |
Left Rear Door Handle Switch Signal |
I |
- |
| 4 |
0.35 |
BK |
2350 |
Ground |
I |
- |
