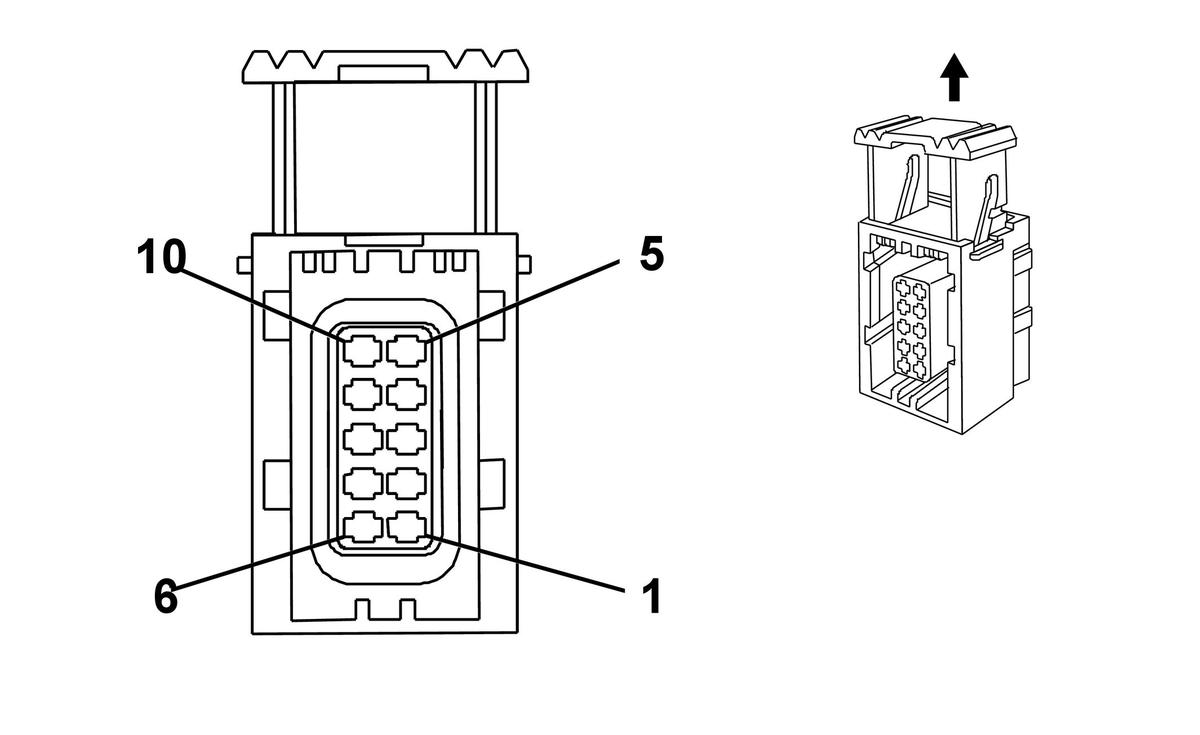

A23RR Door Latch Assembly - Right Rear
|
|
Connector Part Information
- Harness Type: Right Rear Door
- OEM Connector: 10768367
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 10-Way F 1.2 Micro-Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
748 |
Right Rear Door Ajar Switch Signal |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.75 |
BK |
2050 |
Ground |
II |
- |
| 4 |
0.5 |
GY/BK |
3268 |
Child Security Lock Motor Status Signal Right Rear |
I |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.75 |
BN/YE |
294 |
Door Lock Actuator Unlock Control |
II |
- |
| 8 |
0.75 |
GY |
295 |
Door Lock Actuator Lock Control |
II |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
