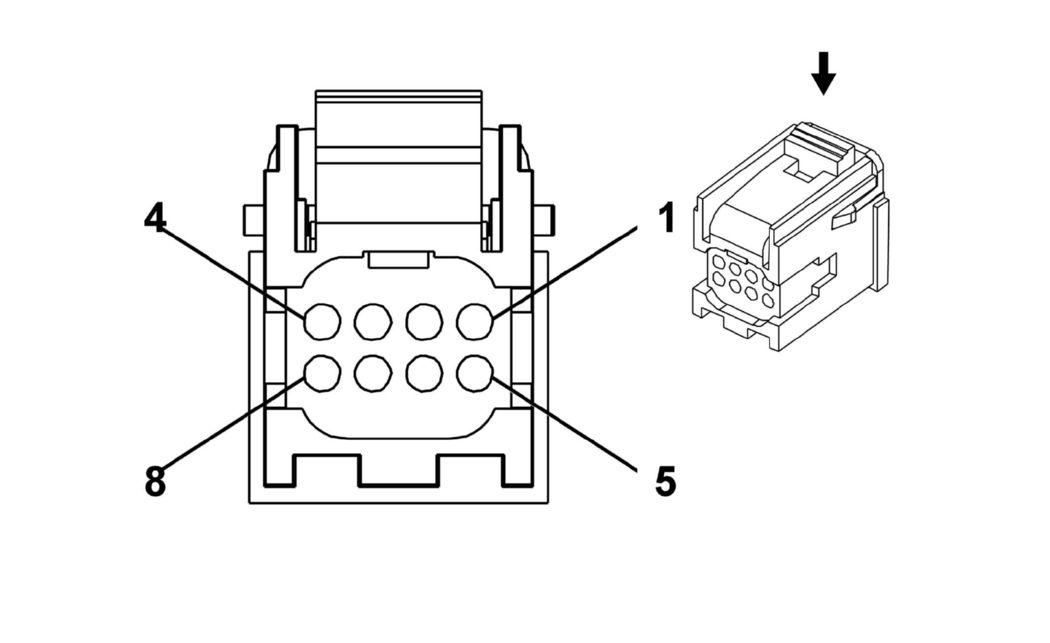

A22 Radio Controls (UDY)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 15406142
- Service Connector: 13337949
- Description: 8-Way F 0.64 Micro Pack Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/L-GN |
3140 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
BK |
1750 |
Ground |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
VT |
7458 |
Center Integrated Center Stack Serial Data High |
I |
- |
| 5 |
0.35 |
YE |
7459 |
Integrated Center Stack Serial Data Low |
I |
- |
| 6 |
0.35 |
Bare |
7460 |
Integrated Center Stack Serial Data Shield |
I |
- |
| 7 |
0.35 |
GY/L-GN |
3291 |
Integrated Center Stack Wake Up Signal |
I |
- |
| 8 |
0.35 |
VT |
3290 |
Integrated Center Stack Reset Signal |
I |
- |
